10.4.8 Bus Fault Detection and Communication (TCAN1144-Q1 and TCAN1146-Q1)

The TCAN1144-Q1 and TCAN1146-Q1 provide advanced bus fault detection. TCAN1146-Q1 is used for illustration purposes. The device can determine certain fault conditions and set a status/interrupt flag so that the MCU can understand what the fault is. Detection takes place and is recorded if the fault is present during four dominant to recessive transitions with each dominant bit being ≥ 2 µs. As with any bus architecture where termination resistors are at each end not every fault can be specified to the lowest level, meaning exact location. The fault detection circuitry is monitoring the CANH and CANL pins (currents) to determine if there is a short to battery, short to ground, short to each other or opens. From a system perspective, the location of the device can impact what fault can be detected. See Figure 10-29 as an example of node locations and how they can impact the ability to determine the actual fault location. Figure 10-30 through Figure 10-34 show the various bus faults based upon the three-node configuration. Table 10-17 shows what can be detected and by which device. Fault 1 is detected as ½ termination and Fault 2 is detected as no termination.

Bus fault detection is a system-level situation. If the fault is occurring at the ECU then the general communication of the bus is compromised. For complete coverage of a node a system level diagnostic step for each node and the ability to communicate this back to a central point is needed.

GUID-F76C0670-9FC8-475C-8AD5-F1F53AE3F48B-low.gifFigure 10-29 Three-Node Example
GUID-12779F35-8F59-4DE7-B3C3-F5C9AFA14F2A-low.gifFigure 10-30 Open Fault 1 and 2 Examples
GUID-6EA45161-4CDE-4E8F-93F3-6CB1EC36364B-low.gifFigure 10-31 Open Fault 3 and 4 Examples

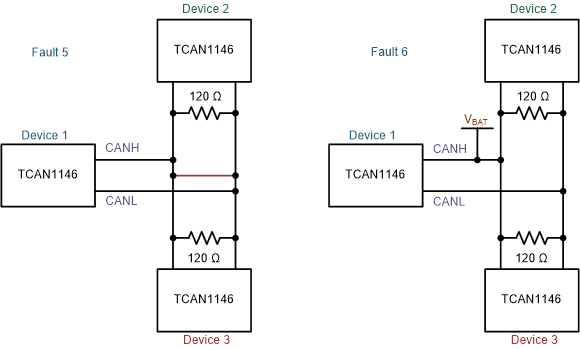

GUID-A9F96133-48A6-4FE6-AF63-19A852B564D7-low.gifFigure 10-32 Fault 5 and 6 Examples
GUID-CC2D85DF-F019-4011-ABFE-15889A7BDCEC-low.gifFigure 10-33 Fault 7, 8 and 9 Examples

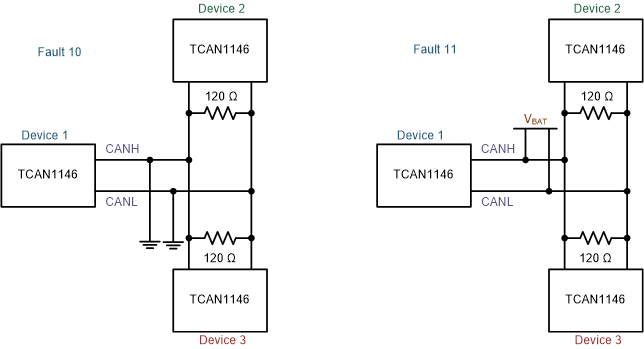

GUID-7FEBDBA7-C59C-4E5B-A43E-4679368CAFC1-low.gifFigure 10-34 Fault 10 and 11 Examples
Table 10-17 Bus Fault Pin State and Detection Table
Fault #CANHCANLFault Detected
1OpenOpenAll positions see this fault as half termination and detect them
2OpenOpenDepending upon open location the device detects this as no termination.
3OpenNormalYes, but cannot tell the difference between it and Fault 2 and 4; Device 2 and Device 3 does not see this fault
4NormalOpenYes, but cannot tell the difference between it and Fault 2 and 3; Device 2 and Device 3 does not see this fault
5Shorted to CANLShorted to CANHYes, but not location
6Shorted to VbatNormalYes, but not location
7Shorted to GNDNormalYes, but cannot tell the difference between this and Fault 10
8NormalShorted to VBATYes, but cannot tell the difference between this and Fault 11
9NormalShorted to GNDYes, but not location
10Shorted to GNDShorted to GNDYes, but cannot tell the difference between this and Fault 7
11Shorted to VbatShorted to VBATYes, but cannot tell the difference between this and Fault 8
Table 10-18 Bus Fault Interrupt Flags Mapping to Fault Detection Number
AddressBIT(S)DEFAULTFLAGDESCRIPTIONFAULT DETECTEDACCESS
8'h5471'b0RSVDReserved
61'b0CANBUSTERMOPENCAN Bus has one termination point openFault 1R/WC
51'b0CANHCANLCANH and CANL Shorted TogetherFault 5R/WC
41'b0CANHBATCANH Shorted to VBATFault 6R/WC
31'b0CANLGNDCANL Shorted to GNDFault 9R/WC
21'b0CANBUSOPENCAN Bus Open (One of three possible places)Faults 2, 3 and 4R/WC
11'b0CANBUSGNDCANH Shorted to GND or Both CANH & CANL Shorted to GNDFaults 7 and 10R/WC
01'b0CANBUSBATCANL Shorted to VBAT or Both CANH & CANL Shorted to VBATFaults 8 and 11R/WC
