8.4.1.3 External Connection

In the configuration shown in Figure 8-17, the bias to PATHSEL (pin 4) is changed in order to select the external input of the OPS. The external D2S output drives a low insertion loss, third-order Bessel filter. The filter in this example is designed with a low frequency insertion loss of 1.55 dB and f–3dB = 50 MHz, and results in an additional insertion loss of 1 dB at 30 MHz. The OPS gain is slightly increased to recover the filter loss, in order to give an input to output gain of 5 V/V. Using an interstage filter between the D2S and the OPS improves the step response by reducing the overshoot. The filter in this example has a relatively low cutoff frequency but if the application requires it, use a filter with a higher cutoff frequency.

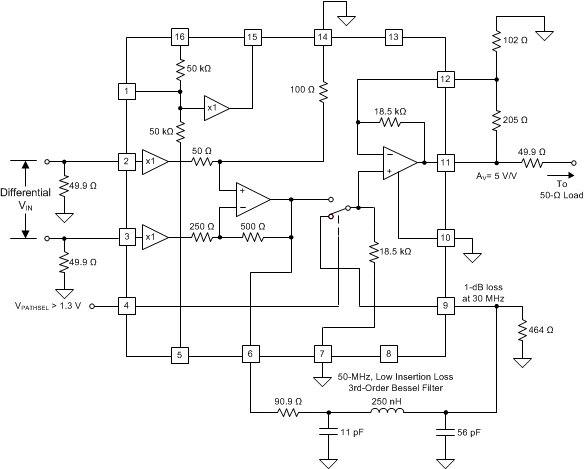

GUID-C979E763-7D66-4C9A-8BE8-71B289E4BD8A-low.gif Figure 8-17 External Path Configuration With Interstage Low-Pass Filter
