11.2 Layout Example

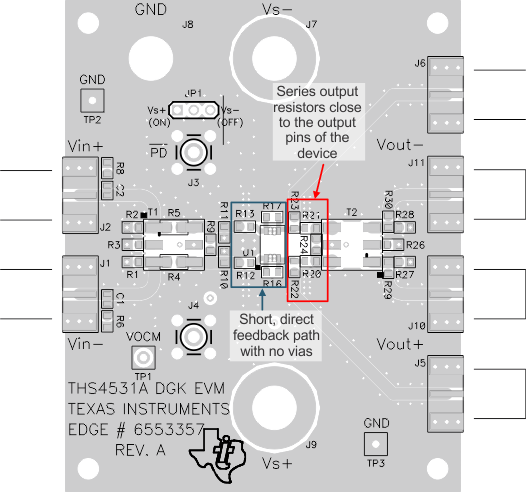

THS4531A Layer1_SLOU356.gifFigure 98. THS4531ADGKEVM Top Layer 1

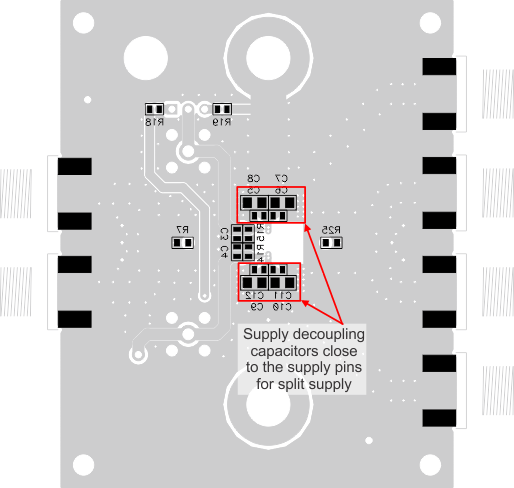

THS4531A Layer2_SLOU356.gifFigure 99. THS4531ADGKEVM Ground Layer 2

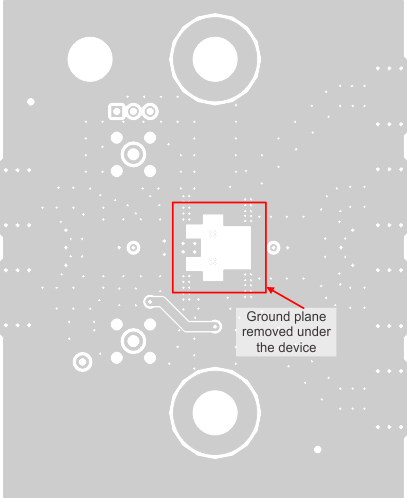

THS4531A Layer3_SLOU356.gifFigure 100. THS4531ADGKEVM Ground Layer 3

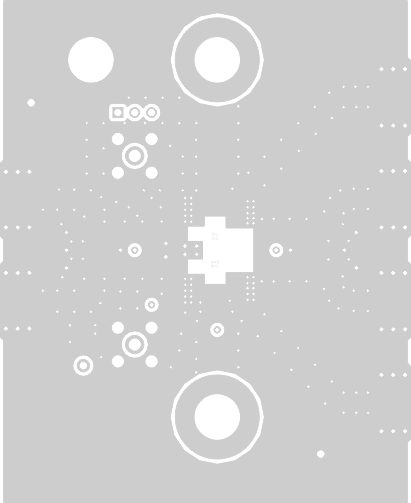

THS4531A Layer4_SLOU356.gifFigure 101. THS4531ADGKEVM Bottom Layer 4
