7.7 Typical Characteristics: (VS+) – (VS–) = 5 V

at TA ≈ 25°C, VOCM pin = open, RF = 1.5 kΩ, RL = 1 kΩ, VO = 2 VPP, 50-Ω input match, G = 1 V/V, PD = VS+, single-ended input (SE-in), differential output (diff-out), and input and output referenced to default midsupply for AC-coupled tests (unless otherwise noted); see Figure 8-1 for a gain of 1-V/V test circuit.

VO = 200 mVPP, see Figure 8-1 and Table 10-1 for resistor values
Figure 7-15 Small-Signal Frequency Response vs Gain
VO = 200 mVPP, see Figure 8-1 with VOCM adjusted
Figure 7-17 Small-Signal Frequency Response vs VOCM
VO = 200 mVPP
Figure 7-19 Gain Flatness vs Frequency
GUID-8A5890D4-E41D-4D05-A688-AC83FAC28F8F-low.gifFigure 7-21 Harmonic Distortion vs Frequency
VO = 5 VPP with RL adjusted
Figure 7-23 Harmonic Distortion vs RL
VO = 5 VPP with VOCM adjusted
Figure 7-25 Harmonic Distortion vs VOCM

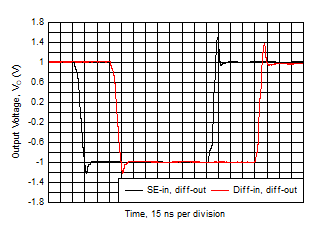

VO = 2-V step,
SE-in, diff-out: rising SR = 325 V/µs, falling SR = 230 V/µs,
diff-in, diff-out: rising SR = 305 V/µs, falling SR = 310 V/µs
Figure 7-27 Large-Signal Step Response
GUID-95EEAE30-C700-4EF2-A0A5-99EF27F2993E-low.gifFigure 7-16 Frequency Response vs VO
VO = 200 mVPP, see Figure 8-1 with RL adjusted
Figure 7-18 Small-Signal Frequency Response vs RL
1/f corners: en = 8 Hz, in = 700 Hz
Figure 7-20 Input Noise Density vs Frequency
GUID-066182E9-F1D8-48E0-AF61-C1F75B0765EF-low.gifFigure 7-22 Harmonic Distortion vs VO
VO = 5 VPP, see Table 10-1 for gain setting
Figure 7-24 Harmonic Distortion vs Gain

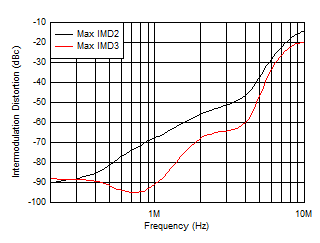

VO = 2 VPP per tone, ±50-kHz tone spacing
Figure 7-26 Intermodulation Distortion (IMD2 and IMD3) vs Frequency
VS = 5 V, VOCM at midsupply, average of 30 units
Figure 7-28 ±Maximum Output Voltage vs Output Current and Temperature
