7.8 Typical Characteristics: (VS+) – (VS–) = 3 V

at TA ≈ 25°C, VOCM pin = open, RF = 1.5 kΩ, RL = 1 kΩ, VO = 2 VPP, 50-Ω input match, G = 1 V/V, PD = VS+, single-ended input (SE-in), differential output (diff-out), and input and output referenced to default midsupply for AC-coupled tests (unless otherwise noted); see Figure 8-1 for a gain of 1-V/V test circuit.

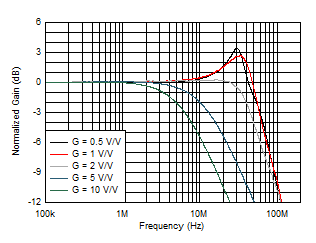

VO = 200 mVPP, see Figure 8-1 and Table 10-1 for resistor values
Figure 7-29 Small-Signal Frequency Response vs Gain

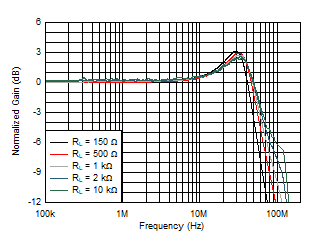

VO = 200 mVPP, see Figure 8-1 with RL adjusted
Figure 7-31 Small-Signal Frequency Response vs RL
G = 1 V/V
Figure 7-33 Harmonic Distortion vs Frequency

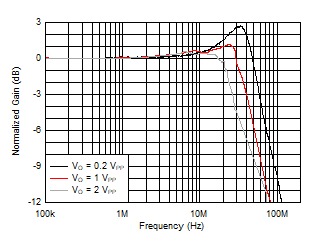

GUID-CC3BBBA0-74BA-4FF6-9158-B348D1CB0D9D-low.gifFigure 7-30 Frequency Response vs VO
1/f corners: en = 9 Hz, in = 700 Hz
Figure 7-32 Input Noise Density vs Frequency
G = 1 V/V, VO = 4 VPP, with RL adjusted
Figure 7-34 Harmonic Distortion vs RL
