8.2 Typical Application

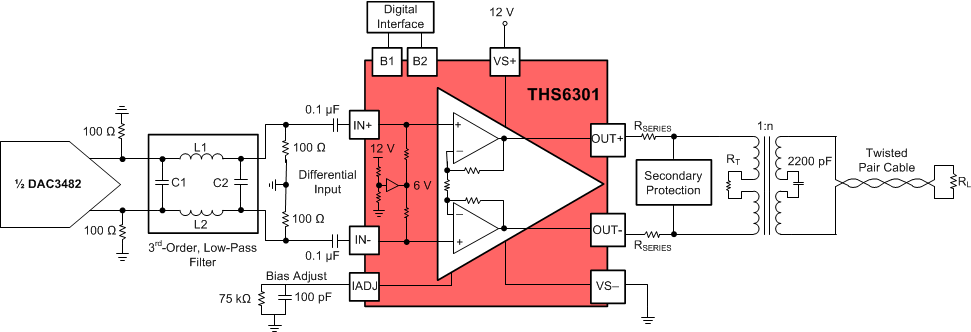

Figure 42 shows a typical application circuit for this device.

THS6301 THS6301_TypicalApplication.gifFigure 42. Typical G.FAST Line Driver Configuration
