9.2.3 Application Curves

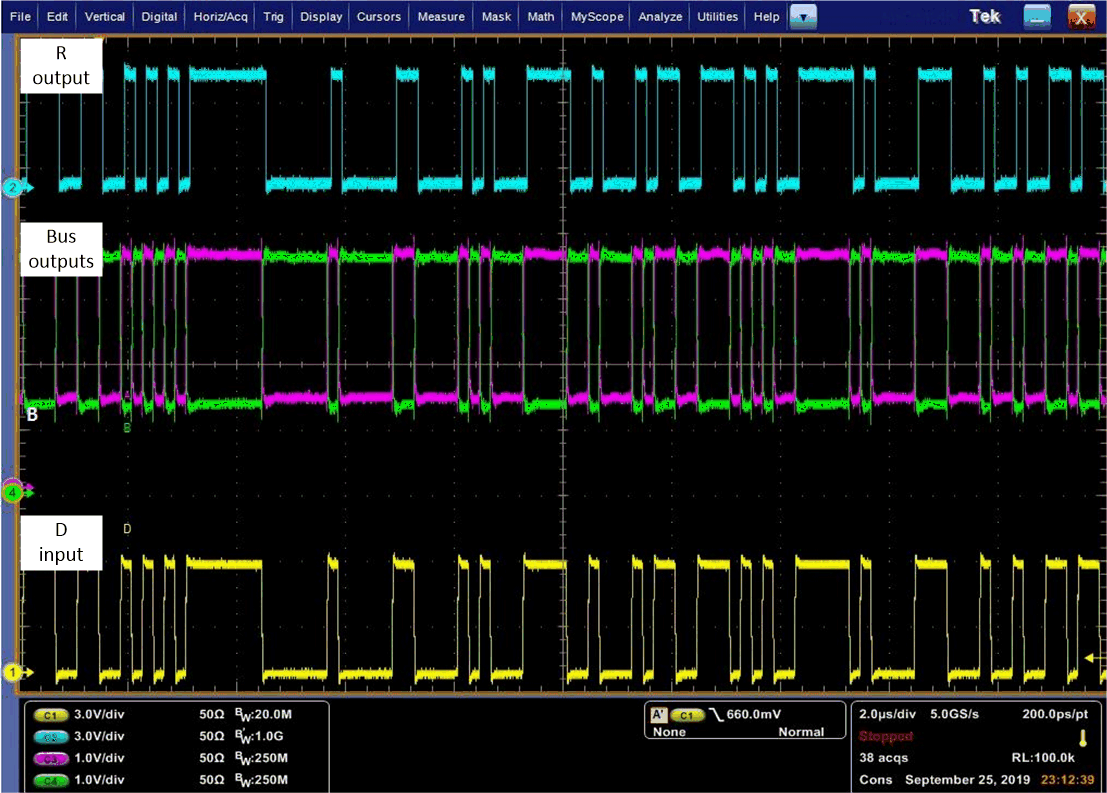

THVD1520 PRBS_data_apps_curve.gifFigure 22. Waveforms at 10 Mbps Operation, PRBS7 Data Pattern

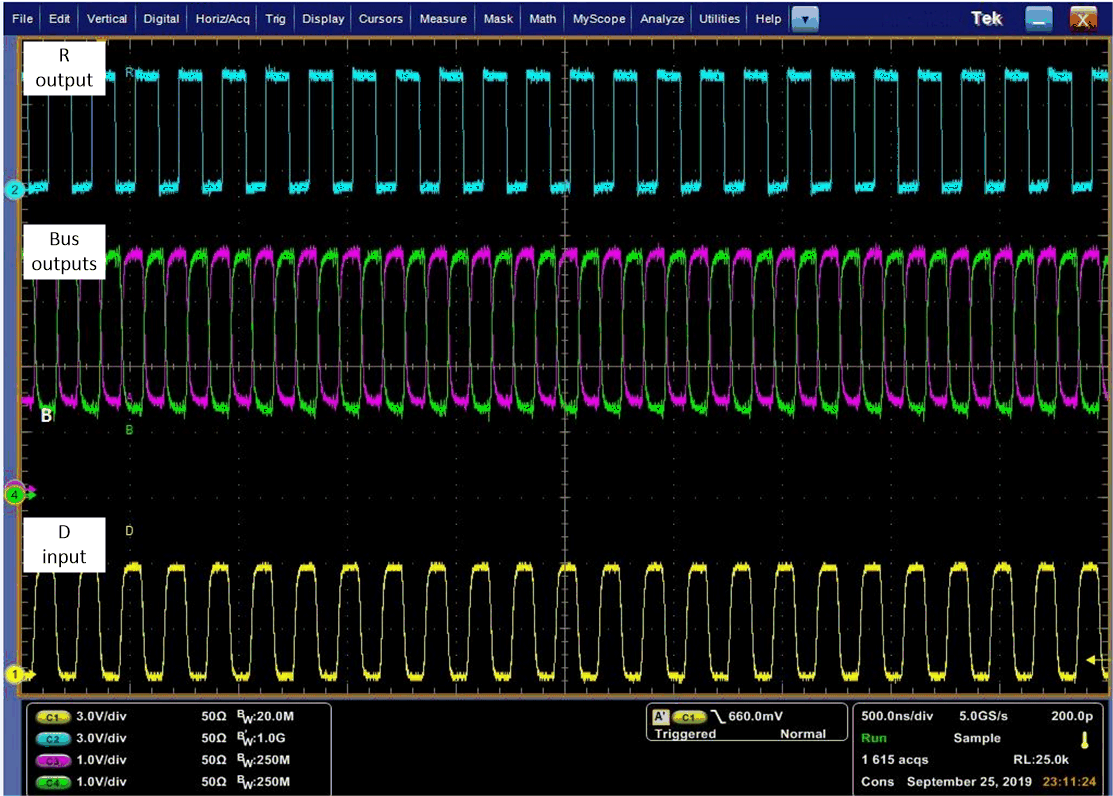

THVD1520 clock_data_apps_curve.gifFigure 23. Waveforms at 10 Mbps Operation, Clock Data Pattern
