9.2.8 System Examples

Table 9-2 lists example circuits of the TL1431.

Table 9-2 Table of Example Circuits
APPLICATIONFIGURE
Shunt regulatorFigure 9-3
Single-supply comparator with temperature-compensated thresholdFigure 9-4
Precision high-current series regulatorFigure 9-5
Output control of a three-terminal fixed regulatorFigure 9-6
Higher-current shunt regulatorFigure 9-7
CrowbarFigure 9-8
Precision 5-V, 1.5-A, 0.5% regulatorFigure 9-9
5-V precision regulatorFigure 9-10
PWM converter with 0.5% referenceFigure 9-11
Voltage monitorFigure 9-12
Delay timerFigure 9-13
Precision current limiterFigure 9-14
Precision constant-current sinkFigure 9-15
R must provide cathode current ≥1 mA to the TL1431 at minimum V(BATT).
Figure 9-3 Shunt Regulator
R must provide cathode current ≥1 mA to the TL1431 at minimum V(BATT).
Figure 9-5 Precision High-Current Series Regulator
GUID-7B01A1C5-D86D-4E6F-B338-231E1D4BB6BE-low.gifFigure 9-7 Higher-Current Shunt Regulator
GUID-07294D5A-A12D-4382-8659-2E8DAE9A434E-low.gifFigure 9-9 Precision 5-V, 1.5-A, 0.5% Regulator

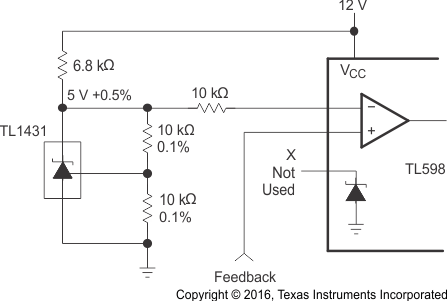

GUID-7C24602B-5A3C-4BA2-ADC0-4B82491C0AF8-low.gifFigure 9-11 PWM Converter With 0.5% Reference
GUID-8A5213CB-CB57-48BC-982E-2E4292ECAE02-low.gifFigure 9-13 Delay Timer
GUID-3EA14588-BFA9-43C9-81D2-959BDBC62C39-low.gifFigure 9-15 Precision Constant-Current Sink
GUID-AC129FD8-5840-4FB3-8FE0-CAAFD073AA52-low.gifFigure 9-4 Single-Supply Comparator With Temperature-Compensated Threshold

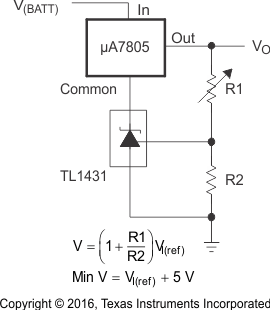

GUID-36E6DAEB-0EE3-4351-933F-9FCD9F9F63FA-low.gifFigure 9-6 Output Control of a Three-Terminal Fixed Regulator
See the stability boundary conditions in Figure 6-16 to determine allowable values for C.
Figure 9-8 Crowbar
Rb must provide cathode current ≥1 mA to the TL1431.
Figure 9-10 5-V Precision Regulator
Select R3 and R4 to provide the desired LED intensity and cathode current ≥1 mA to the TL1431.
Figure 9-12 Voltage Monitor
GUID-08BC3BD3-6E27-4D6E-ACC8-83031D85FCE7-low.gifFigure 9-14 Precision Current Limiter
