11 Layout

11.1 Layout Guidelines

The traces that carry current from the output pins must be wide enough to support the current.

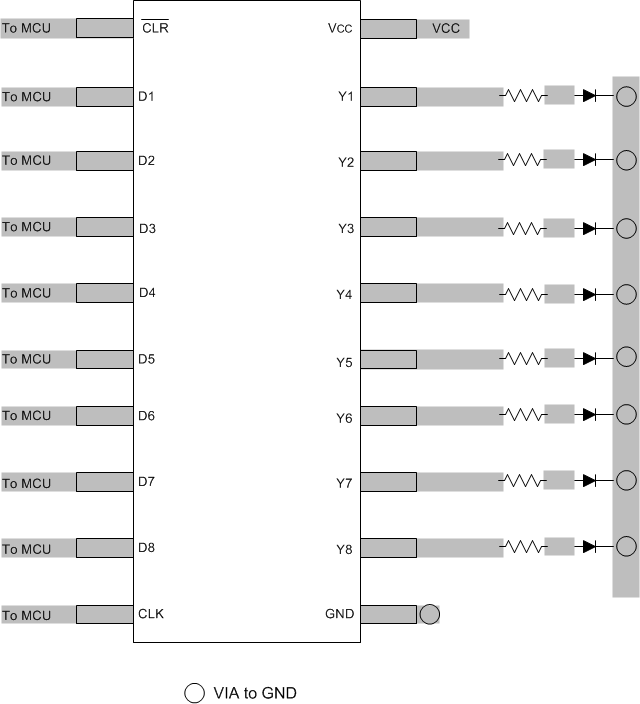

11.2 Layout Example

TLC59213 TLC59213A SLVS867_layout_example.gifFigure 6. Layout Recommendation
