12 Layout

12.1 Layout Guidelines

The traces that carry current from the LED cathodes to the OUTx pins must be wide enough to support the default current (up to 120 mA).

The SDI, CLK, LE (ED1), OE(ED2), and SDO pins should be connected to the microcontroller.

There are several ways to achieve this, including the following methods:

  • Traces may be routed underneath the package on the top layer.
  • The signal may travel through a via to another layer.

The thermal pad in the PWP package should be connected to the ground plane through thermal relief vias. This layout technique will improve the thermal performance of the package.

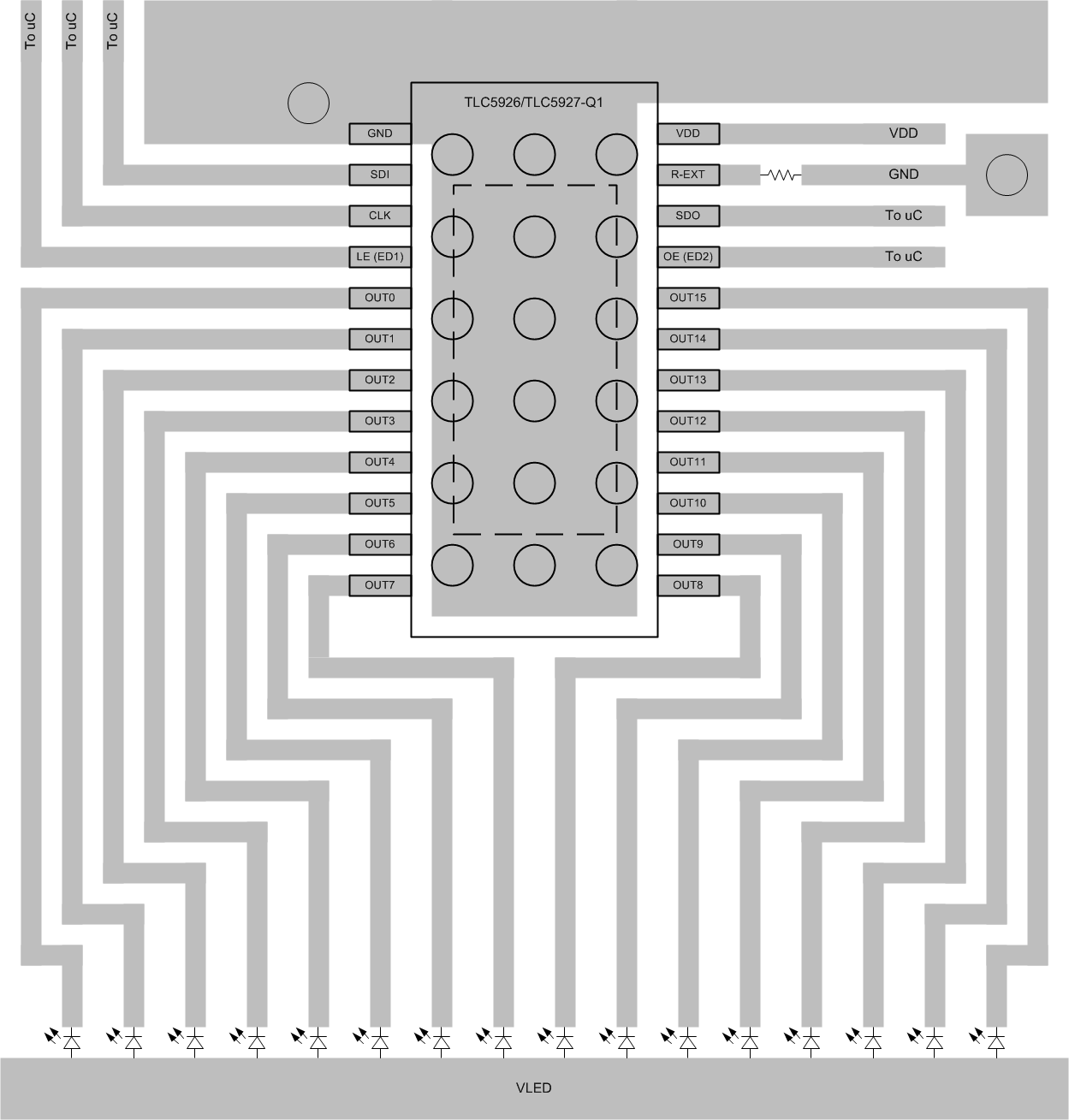

12.2 Layout Example

TLC5926-Q1 TLC5927-Q1 layout_example_slvs973.gifFigure 21. TLC592x-Q1 Layout Example
