Pin Functions: TLV1814-Q1 and TLV1824-Q1

GUID-20200930-CA0I-FCB5-TBJR-28LG0TRKXTL6-low.gifD, PW, DYY Package, 14-Pin SOIC, TSSOP, SOT-23, Top View
NOTE: Connect exposed thermal pad directly to V- pin.

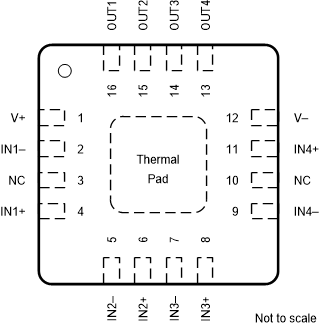

RTE Package, 16-Pad WQFN With Exposed Thermal Pad, Top View
Table 5-3 Pin Functions: TLV1814-Q1 and TLV1824-Q1
PIN I/O DESCRIPTION
NAME SOIC WQFN
OUT2(1) 1 15

O

 Output pin of the comparator 2
OUT1(1) 2 16 O Output pin of the comparator1

V+

 3 1 — Positive supply
IN1– 4 2 I Negative input pin of the comparator 1
IN1+ 5 4 I Positive input pin of the comparator 1
IN2– 6 5 I Negative input pin of the comparator 2
IN2+ 7 6 I Positive input pin of the comparator 2
IN3– 8 7 I Negative input pin of the comparator 3
IN3+ 9 8 I Positive input pin of the comparator 3
IN4– 10 9 I Negative input pin of the comparator 4
IN4+ 11 11 I Positive input pin of the comparator 4
V- 12 12 — Negative supply
OUT4 13 13 O Output pin of the comparator 4
OUT3 14 14 O Output pin of the comparator 3
NC — 3 — No Internal Connection - Leave floating or GND
NC — 10 — No Internal Connection - Leave floating or GND
Thermal Pad — PAD — Connect directly to V- pin.
(1) Some manufacturers transpose the names of channels 1 and 2. Electrically the pinouts are identical, just a difference in channel naming convention.
