9.2.7 Bi-Stable Multivibrator

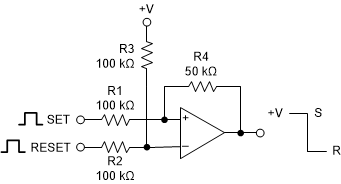

GUID-1D503B56-FE5B-4E73-8685-F44AA7E695DF-low.gifFigure 9-16 Bi-Stable Multivibrator

A bi-stable multivibrator has two stable states. The reference voltage is set up by the voltage divider of R2 and R3. A pulse applied to the SET terminal will switch the output of the comparator high. The resistor divider of R1 and R4 now sets the non-inverting input to a voltage greater than the reference voltage. A pulse applied to RESET will now toggle the output low.
