Typical Characteristics

at operating temperature TJ = 25°C, VIN = VOUT(NOM) + 1.5 V or 2.5 V (whichever is greater), IOUT = 10 mA, VEN = 2.0 V, CIN = 1.0 µF, and COUT = 1.0 µF (unless otherwise noted)

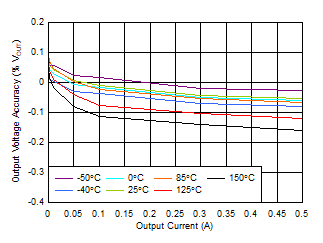

VIN = 2.5 V
Figure 6-1 VOUT Accuracy vs IOUT

Figure 6-3 ISHUTDOWN vs VIN
IOUT = 0 mA, fixed-voltage version devices
Figure 6-5 IQ vs Temperature

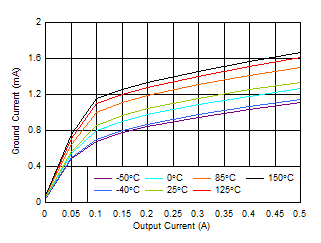

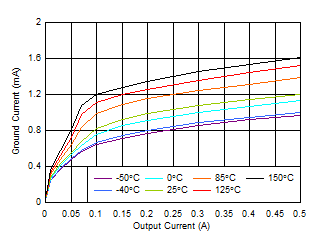

VIN = 2.5 V
Figure 6-7 IGND vs IOUT
VIN = 5 V, VOUT = 3.3 V, CFF = 10 pF, ramp rate = 0.4 A/µs
Figure 6-9 IOUT Transient From 0 mA to 100 mA

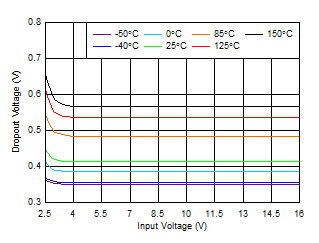

IOUT = 0.5 A
Figure 6-11 VDO vs VIN
VOUT = 3.3 V
Figure 6-13 Startup With Separate VEN and VIN

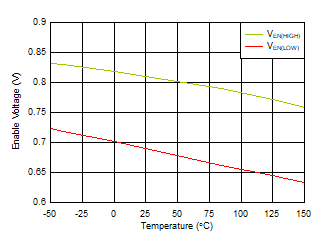

VIN = 2.5 V
Figure 6-15 VEN Thresholds vs Temperature

Figure 6-17 UVLO Thresholds vs Temperature

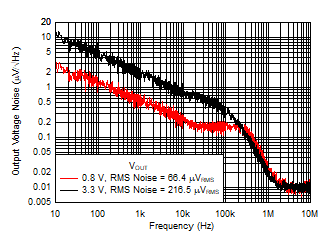

CFF = 0 nF, IOUT = 0.1 A, RMS noise BW = 10 Hz to 100 kHz
Figure 6-19 Output Noise (Vn) vs Frequency and VOUT

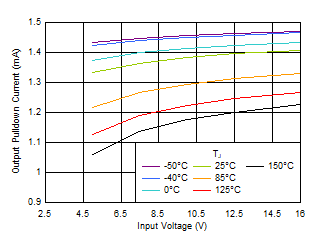

VOUT = 2.5 V
Figure 6-21 IPULLDOWN vs VIN
VOUT = 3.3 V, IOUT = 33 µA
Figure 6-23 Startup Inrush Current With COUT = 22 µF
IOUT = 10 mA
Figure 6-2 VOUT Accuracy vs VIN

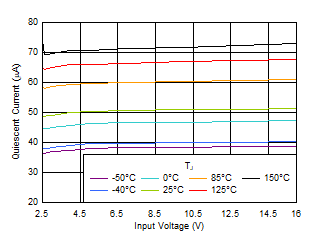

IOUT = 0 mA, adjustable-voltage version devices
Figure 6-4 IQ vs VIN
VIN = 5 V
Figure 6-6 IGND vs IOUT

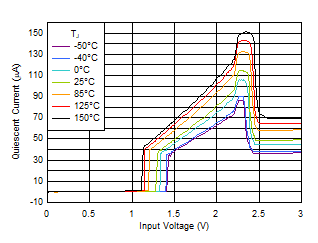

IOUT = 0 mA
Figure 6-8 IQ Increase Below Minimum VIN

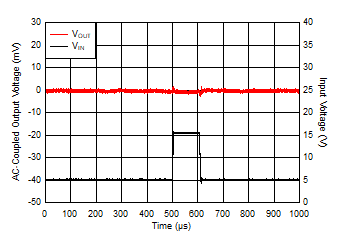

VOUT = 3.3 V, IOUT = 33 µA, VIN ramp rate = 1.6 V/µs
Figure 6-10 VIN Transient From 5 V to 16 V

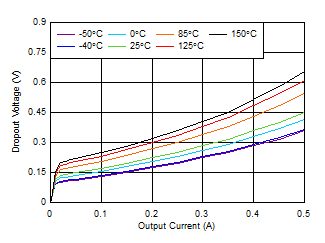

VIN = 2.5 V
Figure 6-12 VDO vs IOUT

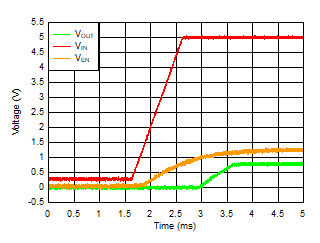

EN pulled up internally, VOUT = 0.8 V
Figure 6-14 Startup With VEN Floating
VIN = 16 V
Figure 6-16 VEN Thresholds vs Temperature
VOUT = 3.3 V, VIN = 4.8 V, IOUT = 0.33 A
Figure 6-18 PSRR vs Frequency and CFF
VEN = 0 V
Figure 6-20 IEN vs VIN

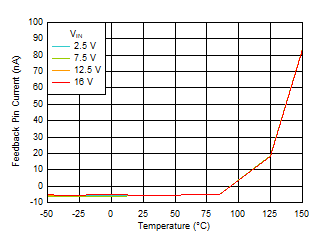

VFB = 1.0 V
Figure 6-22 IFB vs Temperature
VOUT = 3.3 V, IOUT = 33 µA
Figure 6-24 Startup Inrush Current With COUT = 47 µF
