Typical Characteristics

at operating temperature TJ = 25°C, VIN = VOUT(NOM) + 1.5 V or 2.5 V (whichever is greater), IOUT = 10 mA, VEN = 2.0 V, CIN = 1.0 µF, and COUT = 1.0 µF (unless otherwise noted)

VIN = 3.0 V
Figure 7-1 VOUT Accuracy vs IOUT
IOUT = 10 mA
Figure 7-3 VOUT Accuracy vs VIN
IOUT = 0 mA, adjustable-voltage version devices
Figure 7-5 IQ vs VIN
VIN = 3.0 V

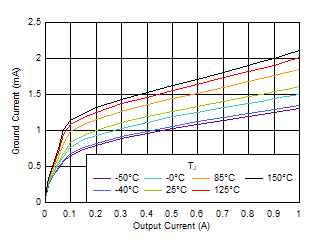

Figure 7-7 IGND vs IOUT
IOUT = 0 mA
Figure 7-9 IQ Increase Below Minimum VIN
VIN = 5 V, VOUT = 3.3 V, CFF = 10 pF, ramp rate = 0.5 A/µs
Figure 7-11 IOUT Transient From 1 mA to 1 A
VOUT = 3.3 V, IOUT = 1 A, VIN ramp rate = 0.6 V/µs
Figure 7-13 VIN Transient in Dropout From 4 V to 13 V
IOUT = 1.0 A
Figure 7-15 VDO vs VIN
VIN = 3.0 V
Figure 7-17 VDO vs IOUT
VIN = 3.0 V
Figure 7-19 Foldback Current Limit vs Temperature
VOUT = 3.3 V

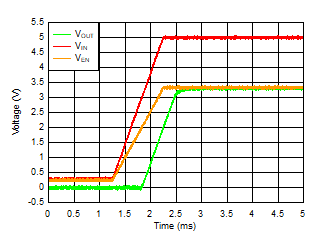

Figure 7-21 Startup With Separate VEN and VIN
VIN = 2.5 V
Figure 7-23 VEN Thresholds vs Temperature

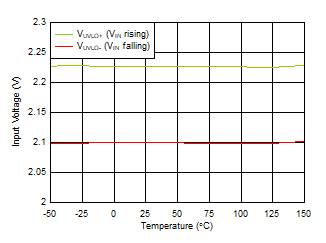

Figure 7-25 UVLO Thresholds vs Temperature
VOUT = 1.8 V, IOUT = 0.55 A, CFF = 1 nF
Figure 7-27 PSRR vs VIN
CFF = 0 nF, IOUT = 0.1 A, RMS noise BW = 10 Hz to 100 kHz
Figure 7-29 Output Noise (Vn) vs VOUT
VOUT = 2.5 V

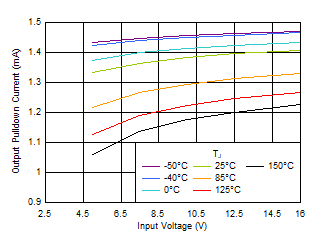

Figure 7-31 IPULLDOWN vs VIN
VOUT = 3.3 V, IOUT = 33 µA
Figure 7-33 Startup Inrush Current With COUT = 22 µF
VIN = 2.5 V
Figure 7-2 VOUT Accuracy vs IOUT

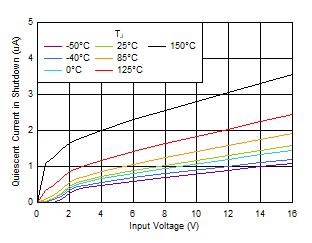

GUID-4A4546F4-9F6B-4A40-A578-46BD70403893-low.gifFigure 7-4 ISHUTDOWN vs VIN
IOUT = 0 mA, fixed-voltage version devices
Figure 7-6 IQ vs Temperature
VIN = 2.5 V
Figure 7-8 IGND vs IOUT
VIN = 5 V, VOUT = 3.3 V, CFF = 10 pF, ramp rate = 0.4 A/µs
Figure 7-10 IOUT Transient From 0 mA to 100 mA
VIN = 5 V, VOUT = 3.3 V, ramp rate = 0.8 A/µs
Figure 7-12 IOUT Transient From 250 mA to 850 mA
VOUT = 3.3 V, IOUT = 33 µA, VIN ramp rate = 1.6 V/µs
Figure 7-14 VIN Transient From 5 V to 16 V
IOUT = 0.8 A

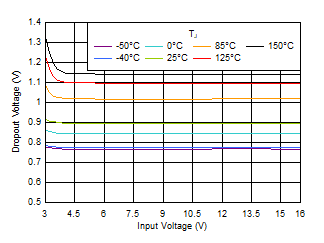

Figure 7-16 VDO vs VIN
VIN = 2.5 V

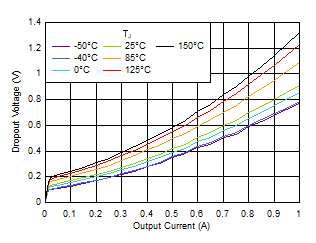

Figure 7-18 VDO vs IOUT
VIN = 2.5 V

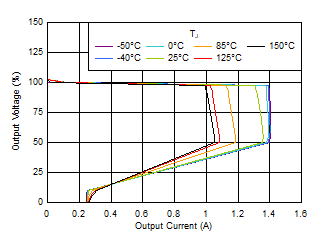

Figure 7-20 Foldback Current Limit vs Temperature
Enable pulled up internally, VOUT = 0.8 V
Figure 7-22 Startup With VEN Floating
VIN = 16 V

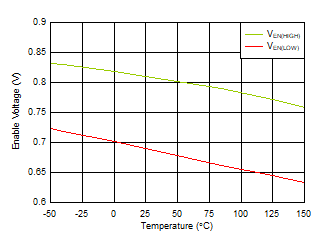

Figure 7-24 VEN Thresholds vs Temperature
VOUT = 1.8 V, VIN = 3.3 V, CFF = 1 nF
Figure 7-26 PSRR vs IOUT
VOUT = 3.3 V, VIN = 4.8 V, IOUT = 0.33 A
Figure 7-28 PSRR vs CFF
VEN = 0 V
Figure 7-30 IEN vs VIN
VFB = 1.0 V

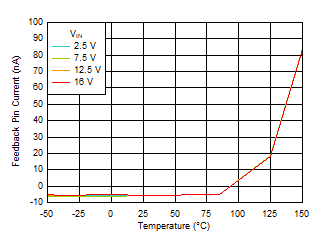

Figure 7-32 IFB vs Temperature
VOUT = 3.3 V, IOUT = 33 µA
Figure 7-34 Startup Inrush Current With COUT = 47 µF
