3 Description

The TLV915x family (TLV9151, TLV9152, and TLV9154) is a family of 16-V, general purpose operational amplifiers. These devices offer exceptional DC precision and AC performance, including rail-to-rail output, low offset (±125 µV, typical), low offset drift (±0.3 µV/°C, typical), and 4.5-MHz bandwidth.

Convenient features such as wide differential input-voltage range, high output current (±75 mA), high slew rate (20 V/μs), and low noise (10.5 nV/√Hz) make the TLV915x a robust, low-noise operational amplifier for industrial applications.

The TLV915x family of op amps is available in standard packages and is specified from –40°C to 125°C.

Device Information
PART NUMBER (1)PACKAGEBODY SIZE (NOM)
TLV9151SOT-23 (5)2.90 mm × 1.60 mm
SOT-23 (6)2.90 mm × 1.60 mm
SC70 (5)2.00 mm × 1.25 mm
TLV9152SOIC (8)4.90 mm × 3.90 mm
SOT-23 (8) 2.90 mm × 1.60 mm
TSSOP (8)3.00 mm × 4.40 mm
VSSOP (8)3.00 mm × 3.00 mm
WSON (8)2.00 mm × 2.00 mm
X2QFN (10)1.50 mm × 1.50 mm
TLV9154SOIC (14)8.65 mm × 3.90 mm
SOT-23 (14) 4.20 mm × 1.90 mm
TSSOP (14)5.00 mm × 4.40 mm
X2QFN (14)2.00 mm × 2.00 mm
(1) For all available packages, see the orderable addendum at the end of the data sheet.

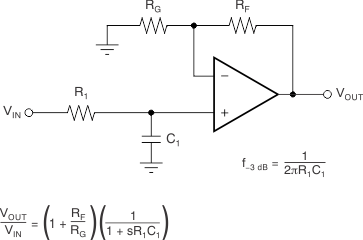

GUID-8F963DB4-283C-4CA5-8337-0F5C3285910E-low.gif TLV915x in a Single-Pole, Low-Pass Filter
