7.1.1 Sensitivity Error

Sensitivity is the proportional change in the sensor output voltage due to a change in the input conductor current. This sensitivity is the slope of the first-order transfer function of the sensor (see Figure 7-1). The sensitivity of the TMCS1127 is tested and calibrated at the factory for high accuracy.

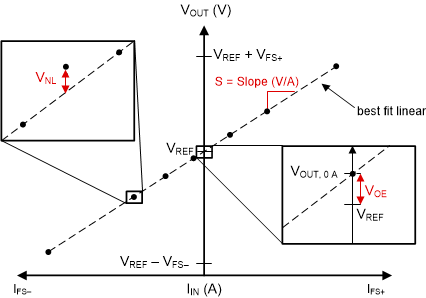

TMCS1127 Sensitivity, Offset, and Nonlinearity Error Figure 7-1 Sensitivity, Offset, and Nonlinearity Error

Sensitivity error eS is the deviation from ideal sensitivity and is defined in Equation 2 as the variation of the best-fit measured sensitivity from the ideal sensitivity.

Equation 2. eS=Sfit-SidealSideal

where

  • eS is the sensitivity error.
  • Sfit is the best fit sensitivity.
  • SIdeal is the ideal sensitivity.

Sensitivity thermal drift Sdrift,therm is the change in sensitivity with temperature and is reported in ppm/°C. To calculate sensitivity error at any given temperature T use Equation 3 to multiply the sensitivity thermal drift by the change in temperature from 25°C and add that value to the sensitivity error at 25°C.

Equation 3. e S , ∆ T = e S , 25 ℃ + S d r i f t , t h e r m × ∆ T

where

  • Sdrift,therm is the sensitivity drift over temperature in ppm/°C.
  • ΔT is the change in device temperature from 25°C.

Sensitivity lifetime drift Sdrift,life is the change in sensitivity due to operational and environmental stresses over the entire lifetime of the device, and is reported as a worst-case percentage change in sensitivity over lifetime at 25°C.
