7 Parameter Measurement Information

TMUX1072 scds382_ron.gif
Channel ON, RON = V/ISINK
Figure 4. ON-State Resistance (RON)
TMUX1072 scds382_off_leakage.gifFigure 5. Off Leakage
TMUX1072 scds382_on_leakage.gifFigure 6. On Leakage

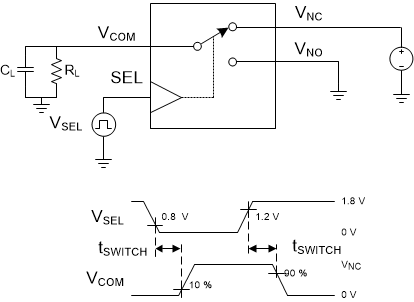

TMUX1072 scds382_tsk_switch_timing.gif
1. All input pulses are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω, tr < 500 ps, tf < 500 ps.
2. CL includes probe and jig capacitance.
Figure 7. tSWITCH Timing
TMUX1072 scds382_t_on_t_off_oe_bar.gif
1. All input pulses are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω, tr < 500 ps, tf < 500 ps.
2. CL includes probe and jig capacitance.
Figure 8. tON, tOFF for OE
TMUX1072 scds382_off_isolation.gifFigure 9. Off Isolation
TMUX1072 scds382_xtalk.gifFigure 10. Cross Talk
TMUX1072 scds382_bw.gifFigure 11. BW and Insertion Loss
TMUX1072 scds382_10ovp.gifFigure 12. tEN_OVP and tDIS_OVP Timing Diagram
TMUX1072 scds382_11prr.gif
1. All input pulses are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω, tr < 500 ps, tf < 500 ps.
2. CL includes probe and jig capacitance.
Figure 13. tPD

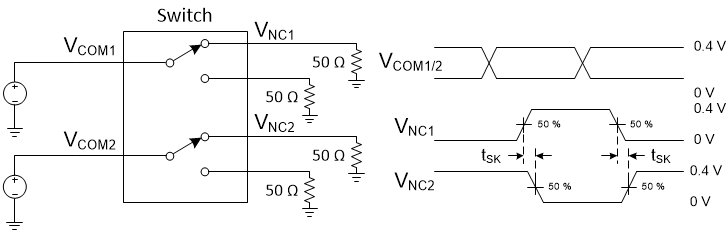

TMUX1072 scds382_tsk.gif
1. All input pulses are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω, tr < 500 ps, tf < 500 ps.
2. CL includes probe and jig capacitance.
Figure 14. tSK
