7.2 Typical Application

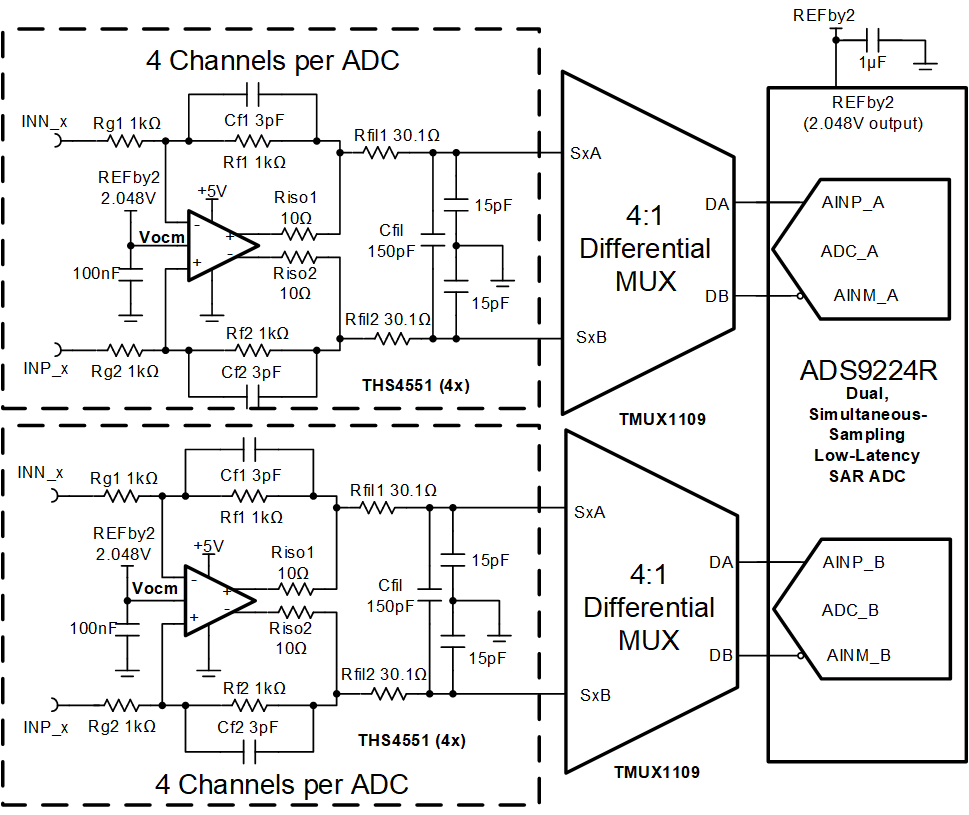

Figure 7-1 shows a 16-bit, simultaneous-sampling data-acquisition system. This example is typical in industrial applications that require sampling simultaneous signals such as optical modules, analog input modules, and motor drive circuits for position feedback. The circuit uses eight fully differential amplifiers (FDAs), a 16-bit, 3-MSPS successive-approximation-resistor (SAR) analog-to-digital converter (ADC), along with a two differential precision multiplexers. Refer to True Differential, 4 x 2 MUX, Analog Front End, Simultaneous-Sampling ADC Circuit for more information.

GUID-9C15544B-A6A7-44BA-AD2A-9AF1D3FD74BC-low.gifFigure 7-1 Simultaneous-Sampling ADC Circuit
