3 Description

The TMUX1119 is a complementary metal-oxide semiconductor (CMOS) single-pole double-throw (2:1) switch. Wide operating supply of 1.08V to 5.5V allows for use in a broad array of applications from medical equipment to industrial systems. The device supports bidirectional analog and digital signals on the source (Sx) and drain (D) pins ranging from GND to VDD. All logic inputs have 1.8V logic compatible thresholds, allowing for both TTL and CMOS logic compatibility when operating in the valid supply voltage range. Fail-Safe Logic circuitry allows voltages on the control pins to be applied before the supply pin, protecting the device from potential damage.

The TMUX1119 is part of the precision switches and multiplexers family of devices. These devices have very low on and off leakage currents and low charge injection, allowing them to be used in high precision measurement applications. A low supply current of 3nA and small package options enable use in portable applications.

Package Information
PART NUMBER PACKAGE(1) PACKAGE SIZE(2)
TMUX1119 DCK (SC70, 6) 2mm × 2.1mm
DBV (SOT-23, 6) 2.9mm × 2.8mm
(1) For more information, see Section 11
(2) The package size (length × width) is a nominal value and includes pins, where applicable.

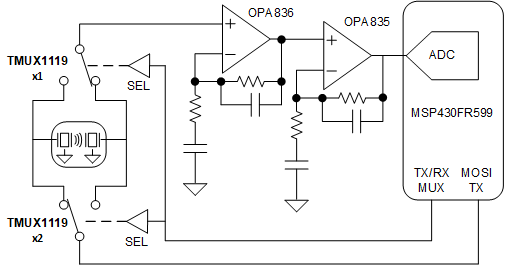

GUID-4469AE56-7986-46C4-874E-6B403EEB8B19-low.gifApplication Example
GUID-0CBB8530-A481-4D6D-BA37-46D4C9BFFB69-low.gifBlock Diagram
