6.4 Transition Time

Transition time is defined as the time taken by the output of the device to rise or fall 10% after the address signal has risen or fallen past the logic threshold. The 10% transition measurement is utilized to provide the timing of the device. System level timing can then account for the time constant added from the load resistance and load capacitance. Figure 6-4 shows the setup used to measure transition time, denoted by the symbol tTRANSITION.

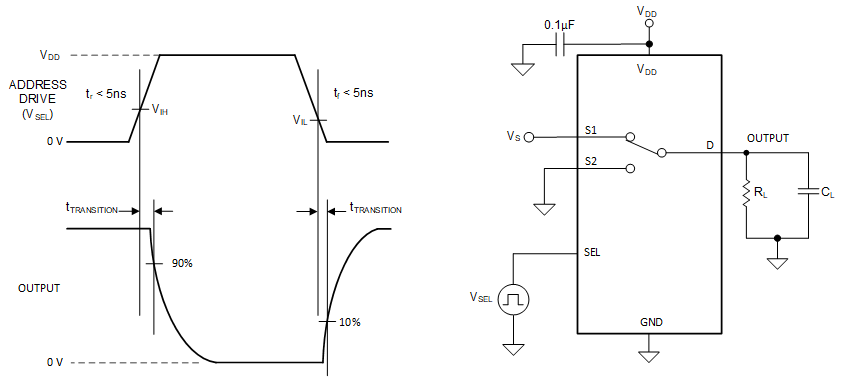

GUID-BE980E8E-6CE6-48E2-AE0D-5616FBBA3EF5-low.gifFigure 6-4 Transition-Time Measurement Setup
