8.3.6 Ultra-Low Charge Injection

The TMUX113x devices have a transmission gate topology, as shown in Figure 8-2. Any mismatch in the stray capacitance associated with the NMOS and PMOS causes an output level change whenever the switch is opened or closed.

The TMUX113x devices have special charge-injection cancellation circuitry that reduces the source-to-drain charge injection to -1pC at VS = 1V as shown in Figure 8-3.

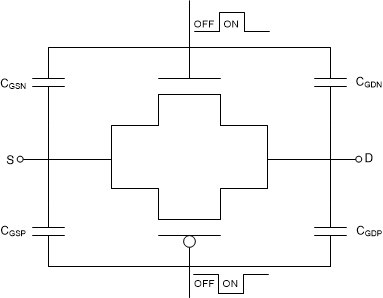

GUID-0040BE35-F6FB-448D-80DC-8147652BDD3F-low.gifFigure 8-2 Transmission Gate Topology
GUID-977B8F5B-5A08-4583-8BE9-CD4305FACFAD-low.gifFigure 8-3 Charge Injection vs Source Voltage
