7.8 Crosstalk

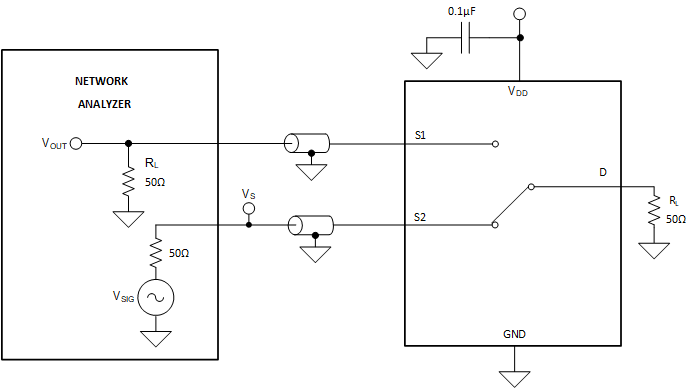

Crosstalk is defined as the ratio of the signal at the drain pin (D) of a different channel, when a signal is applied at the source pin (Sx) of an on-channel. Figure 14 shows the setup used to measure, and the equation used to calculate crosstalk.

TMUX1219 Single_Channel_Crosstalk.gifFigure 14. Crosstalk Measurement Setup
Equation 2. TMUX1219 q_crosstalk_sbas758.gif
