6.9 Typical Characteristics

at TA = 25°C, VDD = 5 V (unless otherwise noted)

TMUX1219 D001_SCDS409.gif
TA = 25°C
Figure 1. On-Resistance vs Source or Drain Voltage
TMUX1219 D003_SCDS409.gif
TA = 25°C

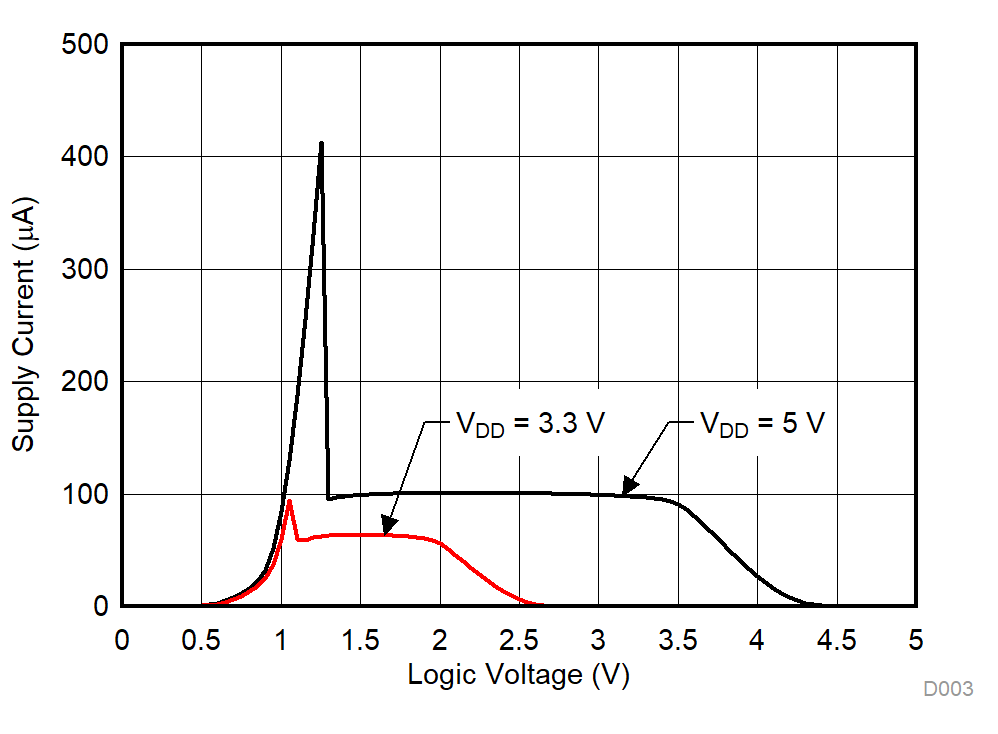

Figure 3. Supply Current vs Logic Voltage
TMUX1219 D005_SCDS409.gif
TA = 25°C

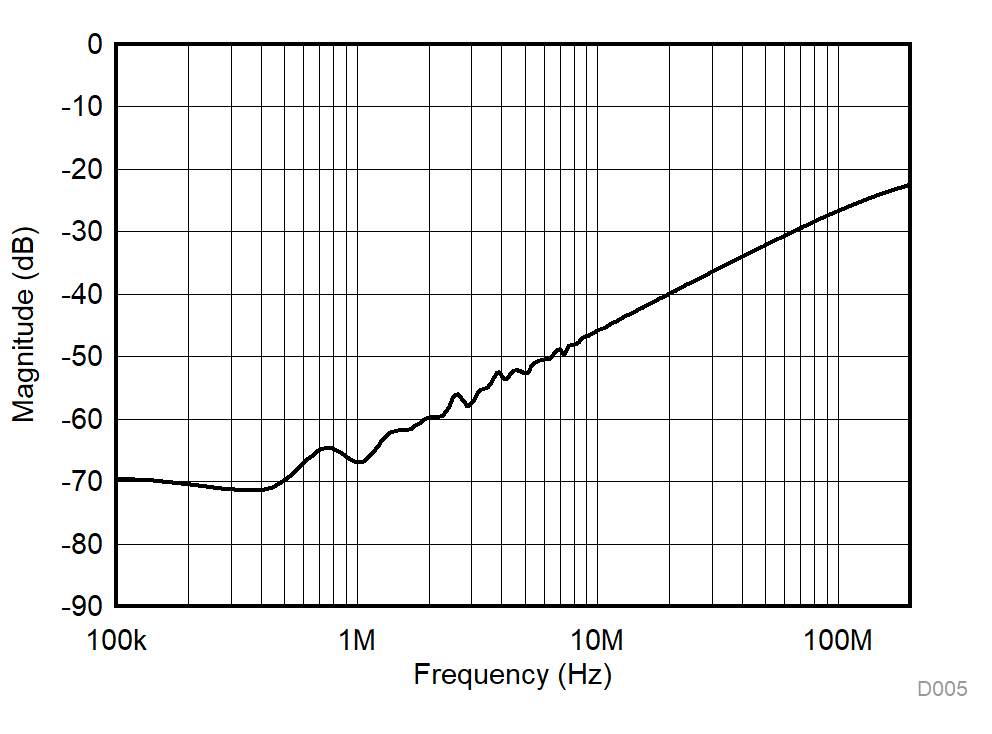

Figure 5. Crosstalk and Off-Isolation vs Frequency
TMUX1219 D002_SCDS409.gif
VDD = 3 V

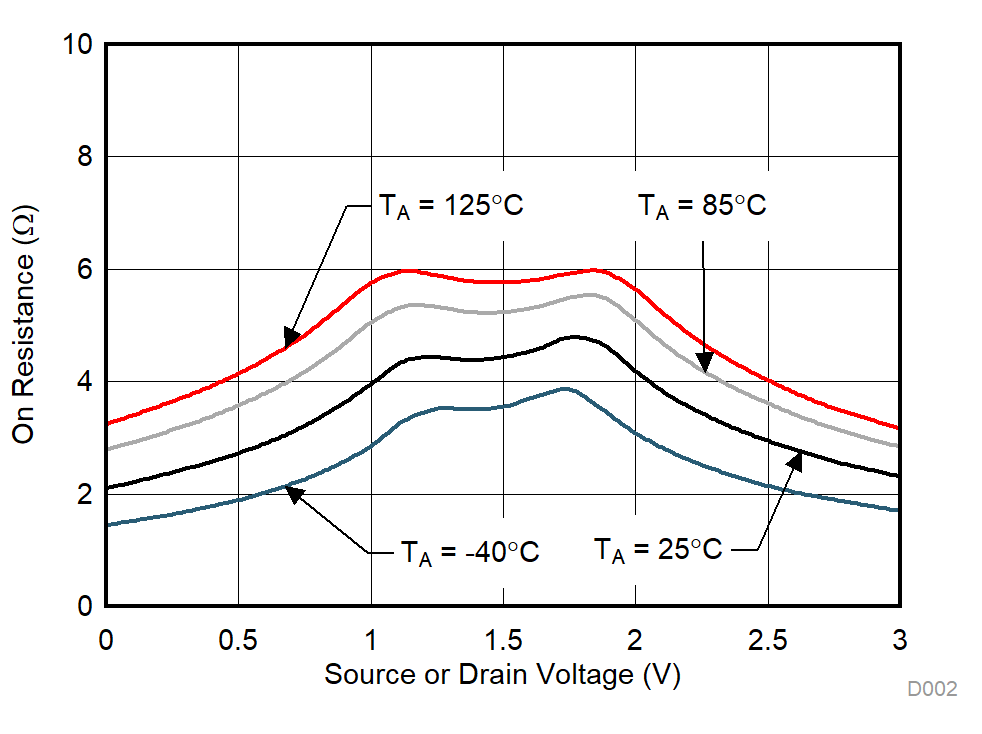

Figure 2. On-Resistance vs Source or Drain Voltage
TMUX1219 D004_SCDS409.gif
TA = 25°C
Figure 4. Ttransition vs Supply Voltage
TMUX1219 D006_SCDS409.gif
TA = 25°C

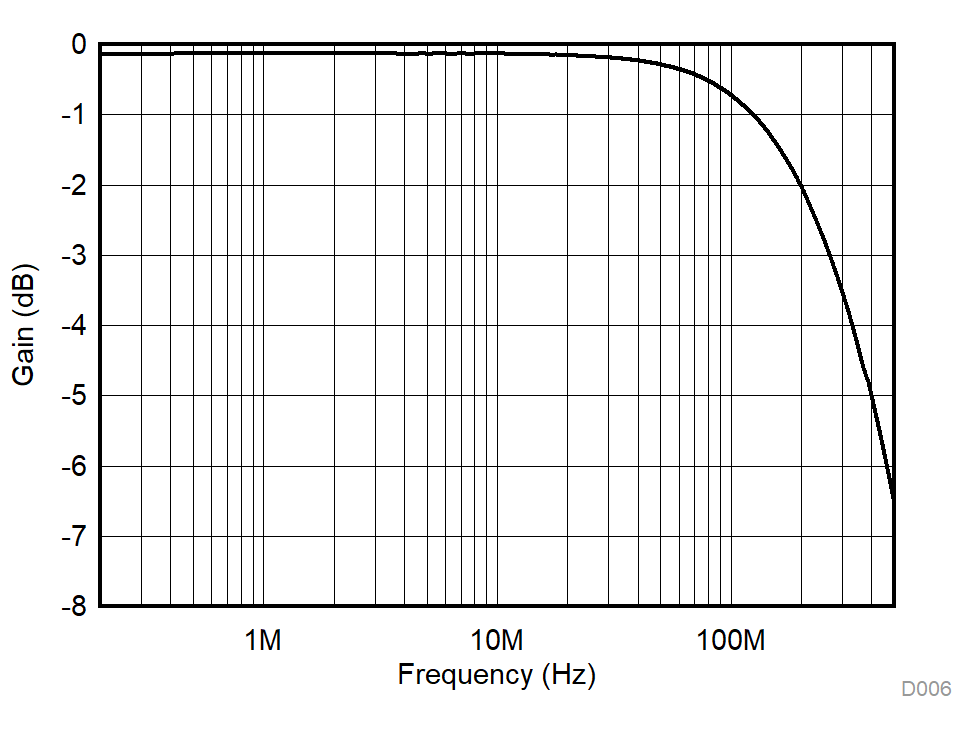

Figure 6. Frequency Response
