7.4 IPOFF Leakage Current

IPOFF leakage current is defined as the leakage current flowing into or out of the source pin when the device is powered off. This current is denoted by the symbol IPOFF.

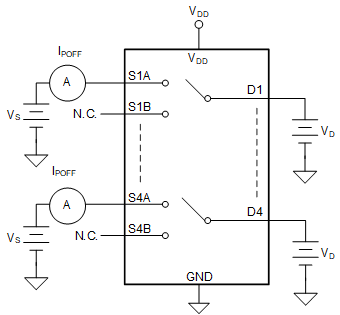

The setup used to measure both IPOFF leakage current is shown in Figure 30.

TMUX1574 IPOFF.gifFigure 30. IPOFF Leakage Measurement Setup
