8.1.8 Off Isolation

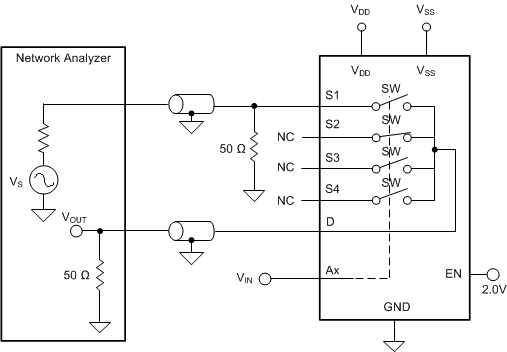

Off isolation is defined as the voltage at the drain pin (D) of the TMUX6104 when a 1-VRMS signal is applied to the source pin (Sx) of an off-channel. Figure 24 shows the setup used to measure off isolation. Use Equation 2 to compute off isolation.

TMUX6104 OFFISO.gifFigure 24. Off Isolation Measurement Setup
Equation 2. TMUX6104 q_off_iso_sbas758.gif
