8.3.1 Ultralow Leakage Current

The TMUX6121, TMUX6122, and TMUX6123 provide extremely low on- and off-leakage currents. The devices are capable of switching signals from high source-impedance inputs into a high input-impedance op amp with minimal offset error because of the ultralow leakage currents. Figure 8-12 shows typical leakage currents of the devices versus temperature.

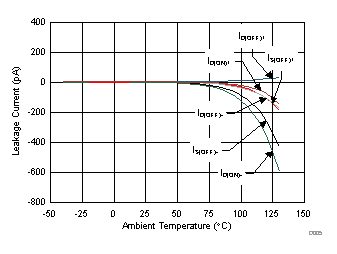

GUID-EFC91B98-4B7A-4E84-B16C-2ED004277412-low.gifFigure 8-12 Leakage Current vs Temperature
