8.12 Crosstalk

The following are two types of crosstalk that can be defined for the devices:

  1. Intra-channel crosstalk (XTALK(INTRA)): the voltage at the source pin (Sx) of an off-switch input, when a 1-VRMS signal is applied at the source pin of an on-switch input in the same channel, as shown in Figure 8-13.
  2. Inter-channel crosstalk (XTALK(INTER)): the voltage at the source pin (Sx) of an on-switch input, when a 1-VRMS signal is applied at the source pin of an on-switch input in a different channel, as shown in Figure 8-14. Inter-channel crosstalk applies only to the TMUX7309F device.

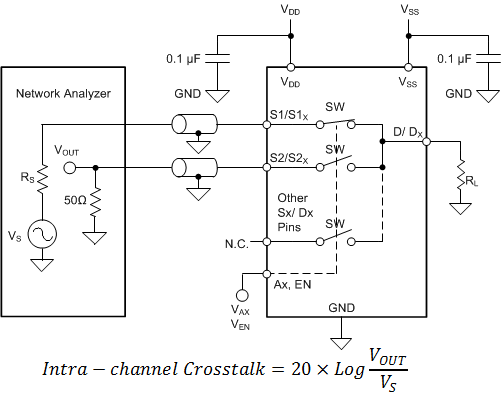

GUID-D663F46B-FD6F-45CF-A9FA-6221B43AF72F-low.gif Figure 8-13 Intra-channel Crosstalk Measurement Setup
GUID-F64D71B5-ADB4-43BB-9583-6D2BF6F281AC-low.gif Figure 8-14 Inter-channel Crosstalk Measurement Setup
