11.2 Layout Example

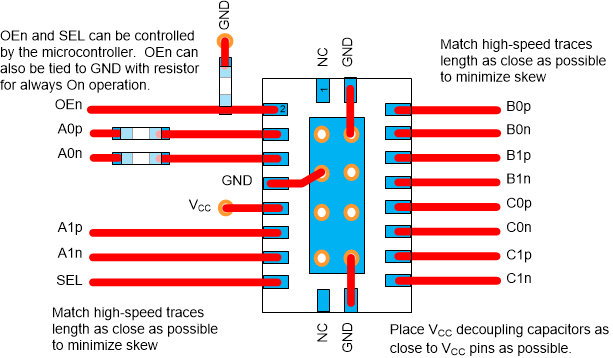

Figure 11-1 shows a basic layout example for the application shown in Section 9.2.1

GUID-A79CB5D6-86D9-4C3B-949F-3745D454FAEF-low.gifFigure 11-1 TMUXHS4212 Layout Example
