7.2.1.2.4.3 Step 3: Additional Low-Pass Filter

Ra must be at least ten-times smaller than RI. Set Ra = 1 kΩ

Equation 30. TPA6211A1-Q1

Therefore,

Equation 31. TPA6211A1-Q1

Substituting 10 kHz for fc(LPF) and solving for Ca:

Equation 32. Ca = 160 pF

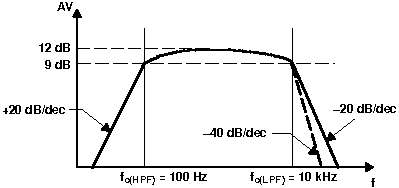

Figure 7-3 is a bode plot for the band-pass filter in the previous example. Figure 7-8 shows how to configure the TPA6211A1-Q1 device as a band-pass filter.

TPA6211A1-Q1 Bode PlotFigure 7-3 Bode Plot
