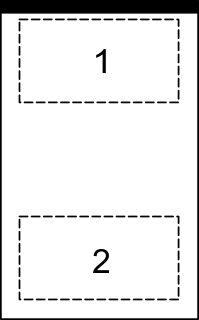

5 Pin Configuration and Functions
DPY Package
2-Pin X1SON
Top View
Pin Functions
PIN
I/O
DESCRIPTION
NO.
NAME
1
IO
I/O
ESD Protected Channel. If used as ESD IO, connect pin 2 to ground
2
IO
I/O
ESD Protected Channel. If used as ESD IO, connect pin 1 to ground
