3 Description

The TPD2E2U06-Q1 is a Transient Voltage Suppressor (TVS) Electrostatic Discharge (ESD) protection diode array with low capacitance. This dual-channel ESD protection diode is rated to dissipate ESD strikes above the maximum level specified in the IEC 61000-4-2 international standard. The 1.5-pF line capacitance of the TPD2E2U06-Q1 makes it ideal for protecting interfaces such as USB 2.0, Ethernet, LVDS, antenna, and I2C.

Package Information(1)
PART NUMBER PACKAGE BODY SIZE (NOM)
TPD2E2U06-Q1 DBZ (SOT23, 3) 2.92 mm × 1.30 mm
DCK (SC70, 3) 2.00 mm × 1.25 mm
(1) For all available packages, see the orderable addendum at the end of the data sheet.

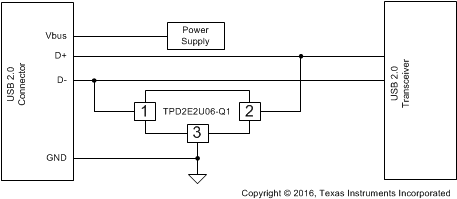

GUID-5F433EB1-3A53-4899-A116-7049E4A5AFE3-low.gif Simplified Schematic
