7 Specifications

7.1 Absolute Maximum Ratings(1)

over operating free-air temperature range (unless otherwise noted)
MIN MAX UNIT
Operating temperature range -40 125 °C
IPP Peak pulse current (tp = 8/20μs) 2.5 A
PPP(forward) Peak pulse power (tp = 8/20μs) 35 W
PPP(reverse) Peak pulse power (tp = 8/20μs) 18 W
(1) Stresses beyond those listed under absolute maximum ratings may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under recommended operating conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

7.2 Handling Ratings

MIN MAX UNIT
Tstg Storage temperature –65 155 °C
ESD(1) IEC 61000-4-2 contact ESD ±12 kV
IEC 61000-4-2 air-gap ESD ±15 kV
(1) Electrostatic discharge (ESD) to measure device sensitivity and immunity to damage caused by assembly line electrostatic discharges in to the device.

7.3 Recommended Operating Conditions

over operating free-air temperature range (unless otherwise noted)
MIN MAX UNIT
VIO 0.0 5.5 V
TA Operating free-air temperature –40 125 °C

7.4 Thermal Information

THERMAL METRIC(1) TPD4E110 UNIT
DPW
(4 TERMINALS)
RθJA Junction-to-ambient thermal resistance 291.8 °C/W
RθJC(top) Junction-to-case (top) thermal resistance 224.2
RθJB Junction-to-board thermal resistance 245.8
ψJT Junction-to-top characterization parameter 31.4
ψJB Junction-to-board characterization parameter 245.6
RθJC(bot) Junction-to-case (bottom) thermal resistance 195.4
(1) For more information about traditional and new thermal metrics, see the IC Package Thermal Metrics application report, SPRA953.

7.5 Electrical Characteristics

TA = 25°C (unless otherwise noted)
PARAMETER TEST CONDITION MIN TYP MAX UNIT
VRWM Reverse stand-off voltage IIO = 10 μA 5.5 V
VCLAMP Clamp voltage with ESD strike I = 1A, TLP, I/O to GND 10 V
I = 5A, TLP, I/O to GND 13 V
I = 1A, TLP, GND to I/O 3 V
I = 5A, TLP, GND to I/O 6 V
VBR Break-down voltage IIO = 1mA 6.5 7.5 8.5 V
ILEAK Leakage current VIO = 2.5V 0.02 1 nA
RDYN Dynamic resistance Any I/O to GND Terminal(1) 0.8 Ω
GND to any I/O Terminal(1) 0.7 Ω
CL Line capacitance VIO = 2.5V, f = 1MHz, I/O to GND 0.45 0.55 pF
CCROSS Channel to channel input capacitance GND Terminal = 0V, f = 1MHz, VBIAS = 2.5 V,
between channel terminals		 0.003 pF
ΔCIO-TO-GND Variation of channel input capacitance GND Terminal = 0V, f = 1MHz, VBIAS = 2.5 V,
Channel_x terminal to GND – Channel_y terminal to GND		 0.05 pF
(1) Extraction of RDYN using least squares fit of TLP characteristics between I = 10A and I = 20A.

7.6 Typical Characteristics

At TA = 25°C, unless otherwise noted
Figure 1. IEC 61000-4-2 Clamping Voltage, +8kV Contact
Figure 3. Insertion Loss
Figure 5. TLP, tPW = 100 nS, tRISE = 10 nS

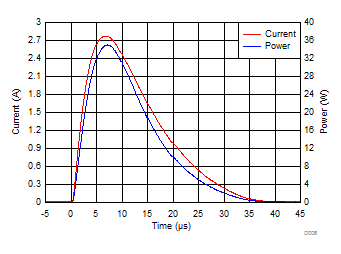

Figure 7. Surge Curves, IO to GND
Figure 9. IO Terminal Capacitance vs VBIAS
Figure 2. IEC 61000-4-2 Clamping Voltage, -8kV Contact

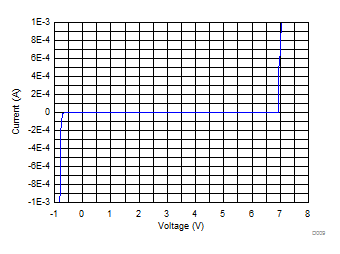

Figure 4. IV Curve

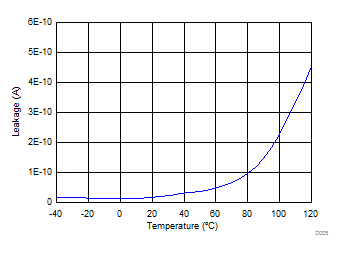

Figure 6. Leakage vs Temperature
Figure 8. Surge Curves, GND to IO
