10 Layout

10.1 Layout Guidelines

  • The IN1 and OUT pins of the TPS2105-EP can carry up to 500 mA, so trace to these pins should have short length and wider traces to minimize the voltage drop to the load.
  • Both the IN1 and IN2 pins should be bypassed to ground with a low-ESR ceramic bypass capacitor. The typical recommended bypass capacitance is 0.22-µF ceramic capacitor.
  • A bypass capacitor and a load capacitor are needed on the output terminal.
  • TI recommends a 220-µF output load capacitor for 100-mA loads.
  • Locating the 1-µF ceramic bypass capacitor at the output can improve the immunity of the device to short-circuit transients.
  • The GND terminal should be tied to the PCB ground plane at the terminal of the DUT.

10.2 Layout Examples

layout_in_out_caps_DUT_slvsch2.gifFigure 20. Input and Output Capacitors and DUT Area
layout_en_in_out_gnd_slvsch2.gifFigure 21. Enable, Input, Output, and Ground Pins

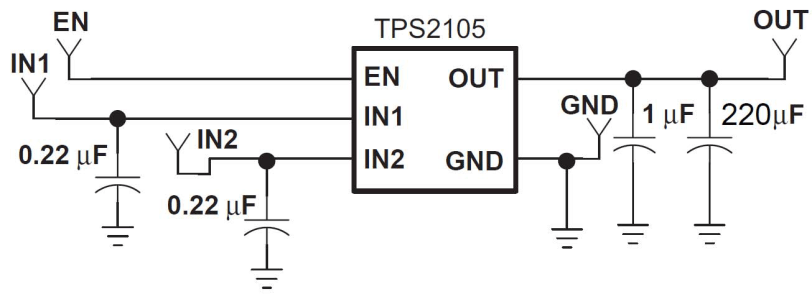

layout_schematic_slvsch2.gifFigure 22. Schematics Diagram

Table 2. Component Descriptions

PART DESCRIPTION
C1, C2 0.22 µF, size 0805
C3 1 µF, size 0805
C4 220 µF, tantalum capacitors
U1 TPS2105MDBVREP
TP_EN, TP_IN1, TP_IN2, TP_OUT, TP_GND Test point, through hole
