12 Layout

12.1 Layout Guidelines

For best performance, all traces should be as short as possible. To be most effective, the input and output capacitors should be placed close to the device to minimize the effects that parasitic trace inductances may have on normal and short-circuit operation. Using wide traces for VIN, VOUT, and GND will help minimize the parasitic electrical effects along with minimizing the case to ambient thermal impedance.

12.2 Layout Example

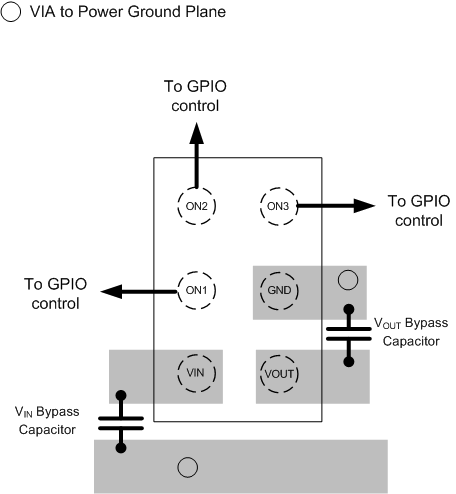

TPS22932B layout.gifFigure 41. Layout Example
