9.2.3 Application Curves

TPS23523 HotPlug54V.png
Figure 17. Start Up (Vin = 54 V)
TPS23523 HotPlug54V_3.png
Figure 19. Start Up (Vin = 54 V)

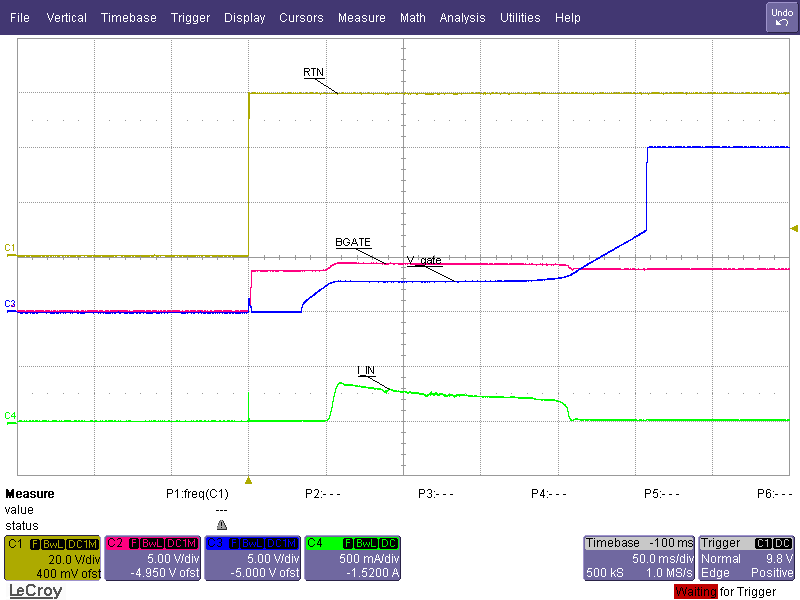

TPS23523 HotPlug60V.png
Figure 21. Start Up (Vin = 60 V)
TPS23523 HotShort_3.png
Zoomed In
Figure 23. Hot Short (Vin = 54 V)

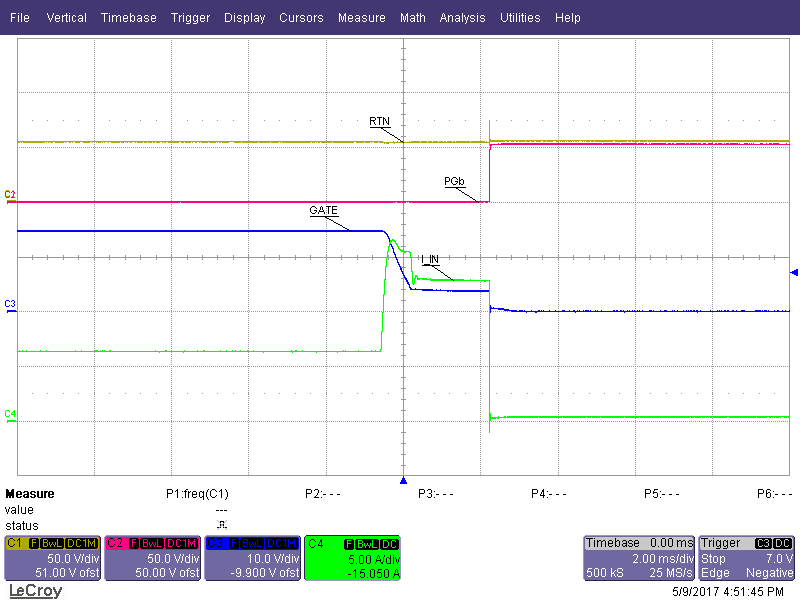

TPS23523 ILIM_LoadStep.png
Figure 25. Load Step Into Current Limit
TPS23523 StartIntoShort.png
Figure 27. Start Into Short
TPS23523 VinShort.png
5-A load
Figure 29. Short on Vin
TPS23523 ReverseHookUp.png
Figure 31. Reverse Hook Up
TPS23523 Brown_Out.png
5-A load
Figure 33. 1-ms Brown Out
TPS23523 LightningSurge_2kV_2.png
6-A load, per IEC61000-4-5
Figure 35. 2 kV (2 Ω) Lightning Surge
TPS23523 LightningSurge_Neg2kV_2.png
6-A load, per IEC61000-4-5
Figure 37. -2 kV (2 Ω) Lightning Surge
TPS23523 HotPlug54V_2.png
Figure 18. Start Up (Vin = 54 V)
TPS23523 HotPlug38V.png
Figure 20. Start Up (Vin = 38 V)

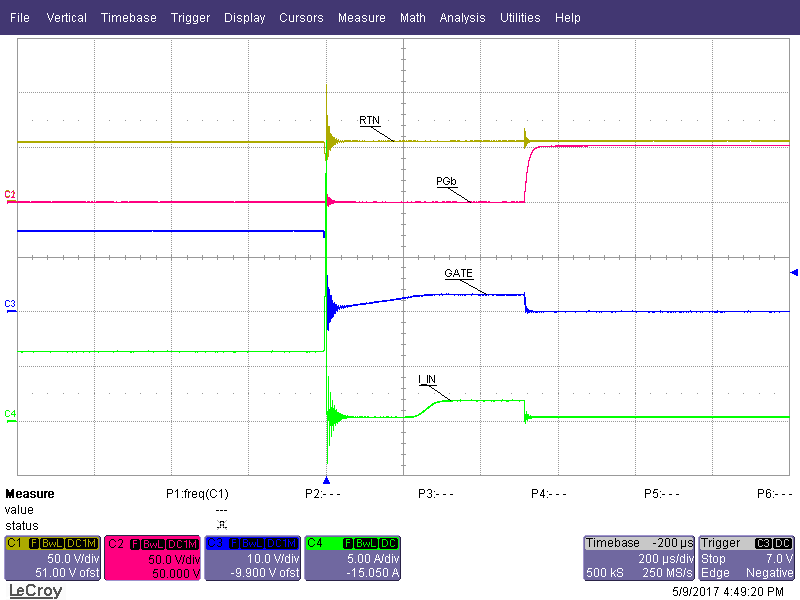

TPS23523 HotShort_2.png
Figure 22. Hot Short (Vin = 54 V)
TPS23523 Gradual_OverCurrent.png
Figure 24. Gradual Over Current

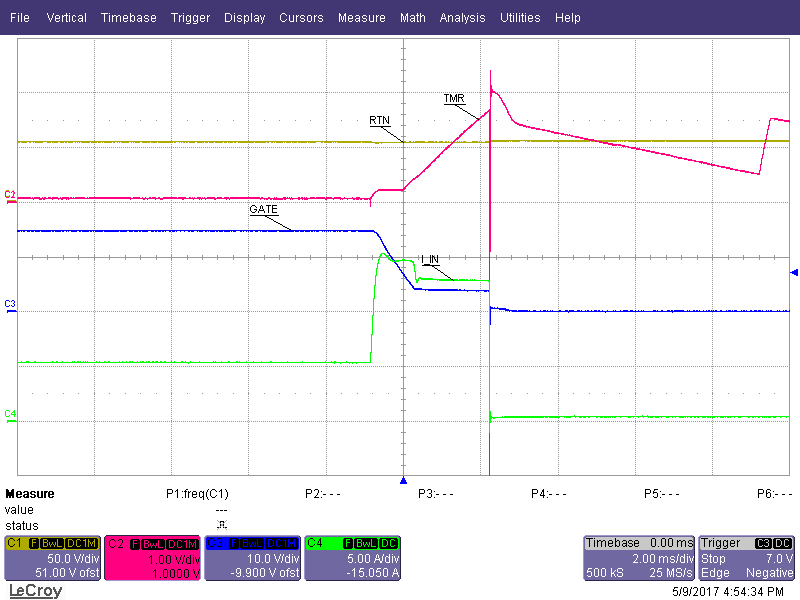

TPS23523 IlimLoadStep_2.png
Figure 26. Load Step Into Current Limit
TPS23523 StartIntoShort_2.png
Figure 28. Start Into Short
TPS23523 VinShort_2.png
5-A load
Figure 30. Short on Vin
TPS23523 ReverseHookUp_2.png
Figure 32. Reverse Hook Up
TPS23523 LightningSurge_2kV.png
6-A load, per IEC61000-4-5
Figure 34. 2 kV (2 Ω) Lightning Surge
TPS23523 LightningSurge_Neg2kV.png
6-A load, per IEC61000-4-5
Figure 36. -2 kV (2 Ω) Lightning Surge
