10.2 Typical Application

This typical application shows an eight (2-Pair) port, semiauto mode application using a MSP430 or similar micro-controller. Operation in any mode requires I2C host support. The TPS23880 provides useful telemetry in multi-port applications to aid in implementing port power management.

GUID-F4F5626B-DA02-471F-B36C-C21AFF9CD614-low.gif Figure 10-1 Eight 2-Pair Port Application

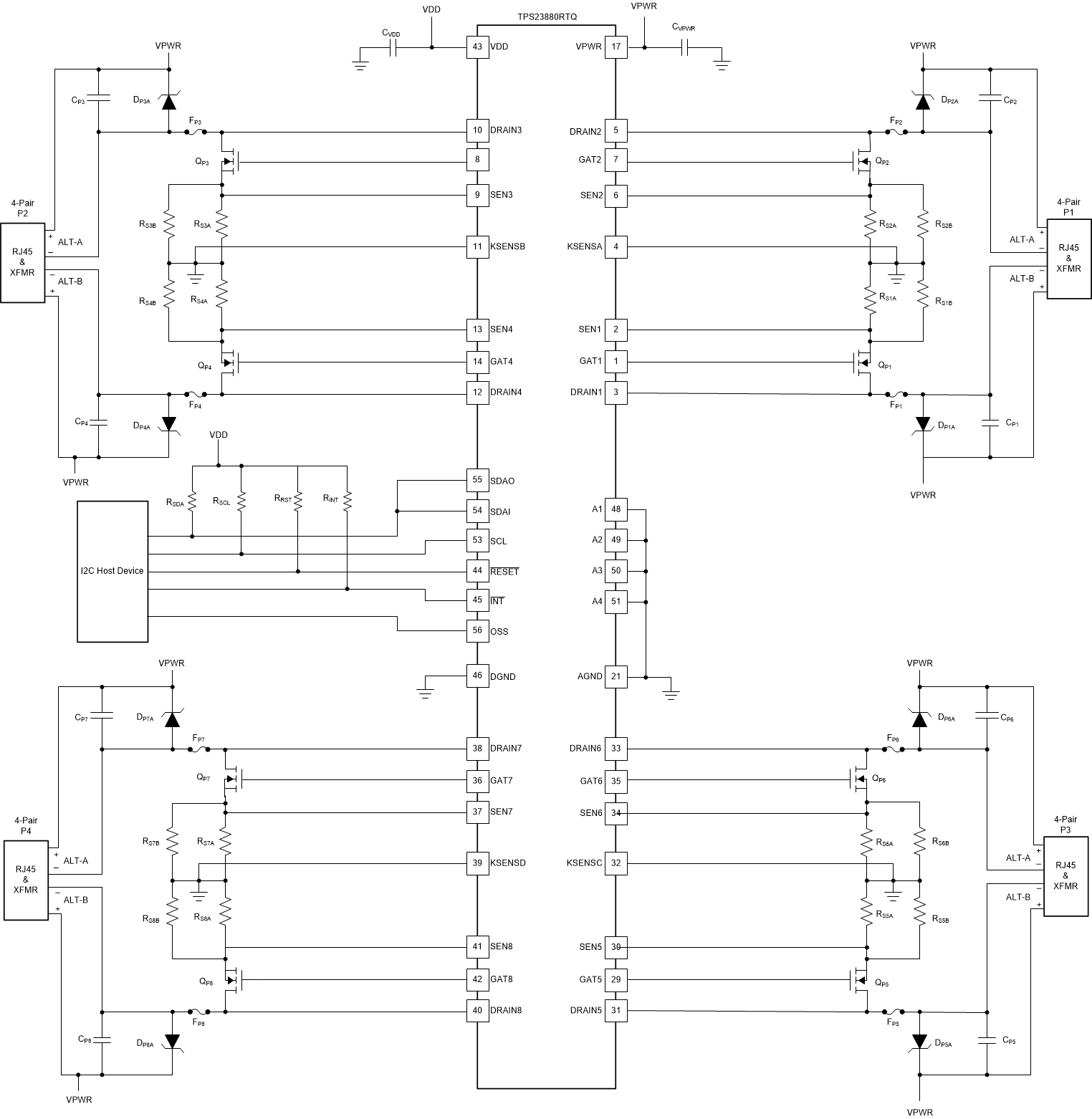

This typical application shows a four (4-Pair) port, semiauto mode application using a MSP430 or similar microcontroller.

GUID-339452C1-7692-47EC-A0BD-E499A53AAF3E-low.gif Figure 10-2 Four 4-Pair Port Application
