8.3.4 Cable Plug and Orientation Detection

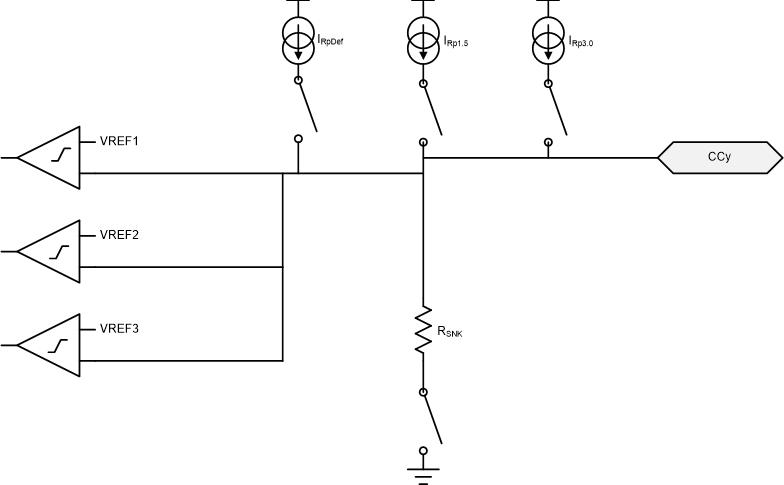

Figure 8-20 shows the plug and orientation detection block at each CCy pin (CC1, CC2). Each pin has identical detection circuitry.

GUID-C2A368CE-2B57-49F0-9C1A-9D656A0BA381-low.gifFigure 8-20 Plug and Orientation Detection Block
