8.3.9 BC 1.2, Legacy and Fast Charging Modes (Px_DP, Px_DM)

BC 1.2 downstream port charger emulation is application GUI configurable. The following charging modes can be enabled or disabled:

  • DCP (Dedicated Charging Port) Shorted Mode
  • Divider-3 Mode
  • 1.2-V Mode
  • HVDCP (High Voltage Dedicated Charging Port) Mode

The following table shows voltage sources, resistors and comparator hardware used in each mode. Symbol "X" represents that the corresponding module is implemented.

Application 2.7-V SRC 1.2-V SRC RDCP_DAT RDM_DWN
(20 kΩ)		 VDAT_REF VSEL_REF
DCP X
Divider-3 X
1.2 V X X
HVDCP X X X

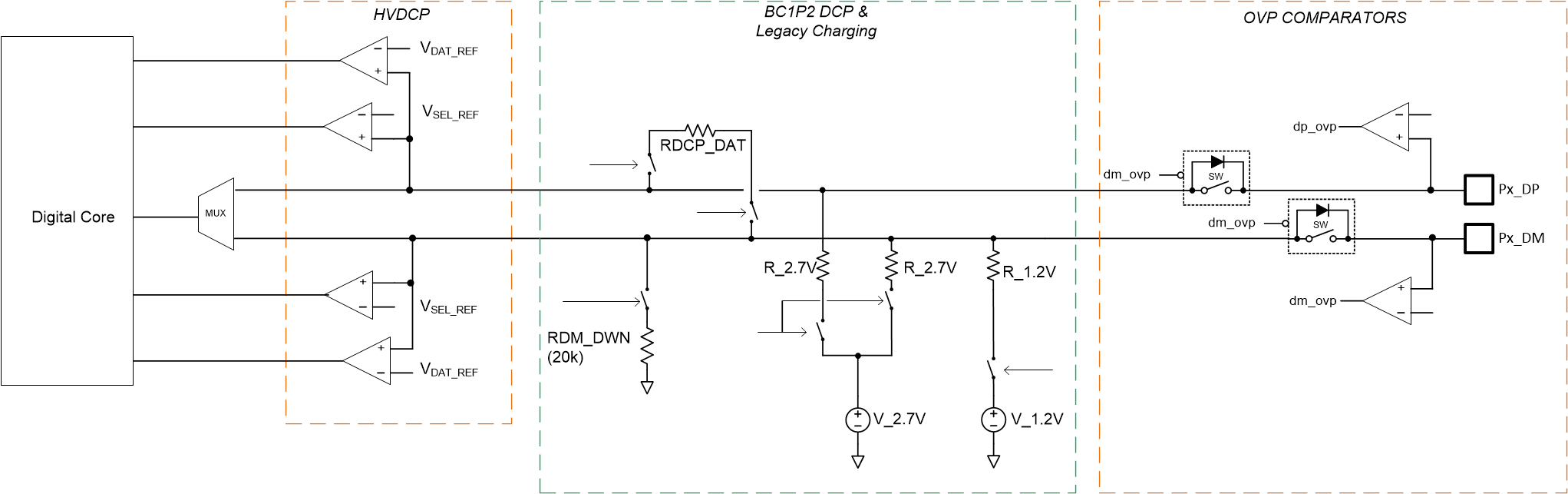

TPS25763-Q1 BC1P2 Functional Diagram Figure 8-33 BC1P2 Functional Diagram
