8.3.5.1 USB-PD Encoding and Signaling

Figure 8-20 illustrates the high-level block diagram of the baseband USB-PD transmitter. Figure 8-21 illustrates the high-level block diagram of the baseband USB-PD receiver.

TPS25763-Q1 USB-PD Baseband Transmitter Block DiagramFigure 8-20 USB-PD Baseband Transmitter Block Diagram

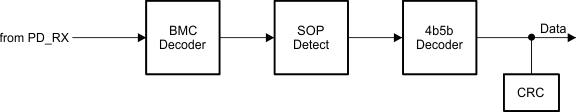

TPS25763-Q1 USB-PD Baseband Receiver Block DiagramFigure 8-21 USB-PD Baseband Receiver Block Diagram
