7.6 Switching Characteristics

1.7 V ≤ VDD ≤ 6.5 V, RLRESET = 100 kΩ, CLRESET = 50 pF, over operating temperature range (TJ = –40°C to 125°C), unless otherwise noted. Typical values are at TJ = 25°C.#SBVS0507773
PARAMETERTEST CONDITIONSMINTYPMAXUNIT
twInput pulse width to RESETSENSEVIH = 1.05 VIT, VIL = 0.95 VIT20μs
MRVIH = 0.7 VDD, VIL = 0.3 VDD0.001
tdRESET delay timeCT = OpenSee #SBVS050FIG7156122028ms
CT = VDD180300420
CT = 100 pF0.751.251.75
CT = 180 nF0.71.21.7s
Propagation delayMR to RESETVIH = 0.7 VDD, VIL = 0.3 VDD150ns
High-to-low level RESET delaySENSE to RESETVIH = 1.05 VIT, VIL = 0.95 VIT20μs
(1) RLRESET and CLRESET are the resistor and capacitor connected to the RESET pin.

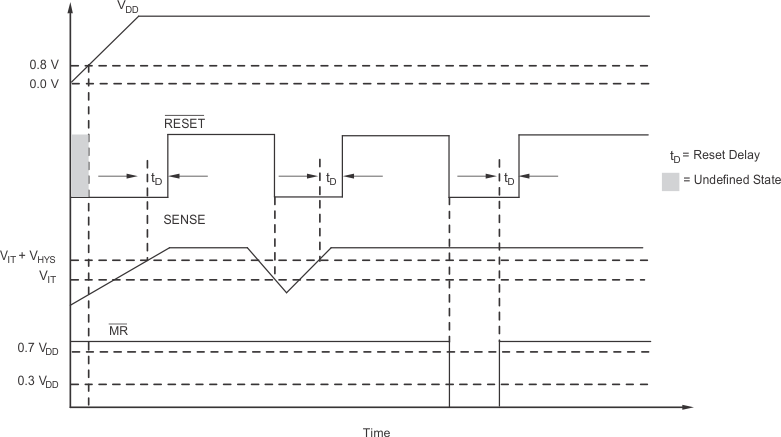

GUID-C6886B69-A769-42B1-94CF-D8D60E22F33E-low.gifFigure 7-1 TPS3808 Timing Diagram Showing MR and SENSE Reset Timing
