8.3.1.2 VDD Transient Immunity

The TPS3840-Q1 is immune to quick voltage transients or excursion on VDD. Sensitivity to transients depends on both pulse duration and overdrive. Overdrive is defined by how much VDD deviates from the specified threshold. Threshold overdrive is calculated as a percent of the threshold in question, as shown in Equation 1.

Equation 1. Overdrive = | (VDD / VIT- – 1) × 100% |

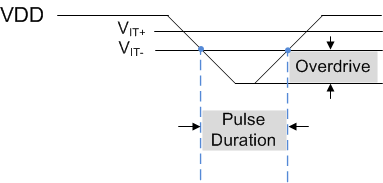

TPS3840-Q1 Overdrive.gifFigure 46. Overdrive vs Pulse Duration
