8.2 Typical Application

A typical application for the TPS3852-Q1 is shown in Figure 20. The TPS3852G33-Q1 is used to monitor the
3.3-V, VCORE rail powering the microcontroller.

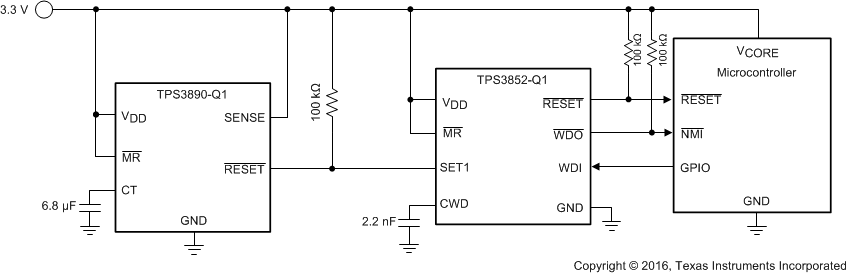

TPS3852-Q1 TypApp_AppSec1.gifFigure 20. Monitoring Supply Voltage and Watchdog Supervision of a Microcontroller
