8.4 Performance Graphs
The performance graphs in Figure 8-6 - Figure 8-12 are applicable to the circuit in Figure 8-3. TA = 25°C. unless otherwise specified.
Figure 8-6 Efficiency vs. Output Current
Figure 8-8 Input Regulation % vs. Input Voltage
Figure 8-10 Output Voltage Ripple and PH Node, IO = 3 A
Figure 8-12 Startup Waveform, VIN and VOUT
Figure 8-7 Output Regulation % vs. Output Current
Figure 8-9 Input Voltage Ripple and PH Node, IO = 3 A

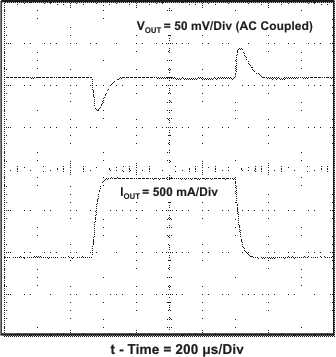

Figure 8-11 Transient Response, Io Step 0.5 to 1.5 A
Figure 8-13 Startup Waveform, ENA and VOUT
