3 Description

The TPS54332 is a 28-V, 3.5-A non-synchronous buck converter that integrates a low-RDS(on) high-side MOSFET. To increase efficiency at light loads, a pulse-skipping Eco-mode feature is automatically activated. Furthermore, the 1-μA shutdown supply current allows the device to be used in battery-powered applications. Current mode control with internal slope compensation simplifies the external compensation calculations and reduces component count while allowing the use of ceramic output capacitors. A resistor divider programs the hysteresis of the input undervoltage lockout. An overvoltage transient protection circuit limits voltage overshoots during start-up and transient conditions. A cycle-by-cycle current limit scheme, frequency foldback and thermal shutdown protect the device and the load in the event of an overload condition. The TPS54332 is available in an 8-pin SOIC PowerPAD integrated circuit package.

Package Information(1)
PART NUMBER PACKAGE PACKAGE SIZE(2)
TPS54332 DDA (SO PowerPAD, 8) 4.9 mm × 6 mm
(1) For all available packages, see the orderable addendum at the end of the data sheet.
(2) The package size (length × width) is a nominal value and includes pins, where applicable

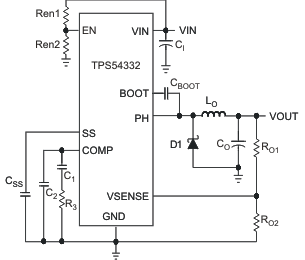

GUID-618B4866-8286-4EC5-9C39-06E00FD0DC5D-low.gifSimplified Schematic
GUID-42CE6BF1-B5B6-4DA2-84F9-FB6CA4F6ACE1-low.gifEfficiency
