5 Pin Configuration and Functions

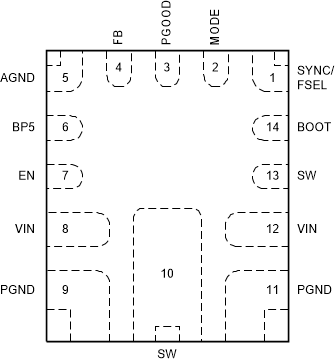

GUID-BC7B9A9E-2ABF-4ECE-B42F-2C567B9E228F-low.gif Figure 5-1 14-Pin VQFN-HR RPY Package (Top View)
Table 5-1 Pin Functions
Pin Type Description
Name NO.
SYNC/FSEL 1 I Frequency select and external clock synchronization. A resistor to ground sets the switching frequency of the device. An external clock can also be applied to this pin to synchronize the switching frequency.
MODE 2 I A resistor to ground selects the current limit, soft-start rate, and PWM ramp amplitude.
PGOOD 3 O Open-drain power-good indicator
FB 4 I Feedback pin for output voltage regulation. Connect this pin to the midpoint of a resistor divider to set the output voltage.
AGND 5 — Ground return for internal analog circuits
BP5 6 O Internal 4.5-V regulator output. Bypass this pin with a 2.2-μF capacitor to AGND.
EN 7 I Enable pin. Float to enable, enable or disable with an external signal, or adjust the input undervoltage lockout with a resistor divider.
VIN 8, 12 I Input power to the power stage. Low impedance bypassing of these pins to PGND is critical. A 10-nF to 100-nF capacitor from each VIN to PGND close to IC is required.
PGND 9, 11 — Ground return for the power stage. This pin is internally connected to the source of the low-side MOSFET.
SW 10 O Switch node of the converter. Connect this pin to the output inductor.
SW 13 O Return path for the internal high-side MOSFET gate driver bootstrap capacitor. Connect a capacitor from BOOT to this pin. The SW pins are connected internally.
BOOT 14 I Supply for the internal high-side MOSFET gate driver. Connect a capacitor from this pin to SW.
