11.3 Package Size, Efficiency and Thermal Performance

The TPS543C20 device is available in a 5 mm x 7 mm, QFN package with 40 power and I/O pins. It employs TI proprietary MCM packaging technology with thermal pad. With a properly designed system layout, applications achieve optimized safe operating area (SOA) performance. The curves shown in and are based on the orderable evaluation module design.

TPS543C20 D001_SLUSCD4.gif
VIN = 12 V VOUT = 5 V 500 kHz

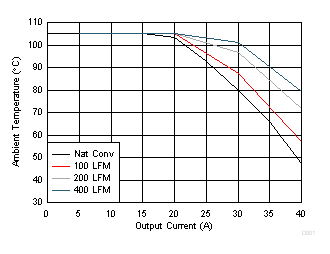

Figure 43. Safe Operating Area
TPS543C20 TPS543C20-12Vin-900mVout-40A-500kHz-1PH-Default_EVM_SLUSCD4.pngFigure 45. Thermal Image at 0.9-V Output at 12 VIN, 40-A Output, at 25°C Ambient
TPS543C20 D002_SLUSCD4.gif
1.
VIN = 12 V VOUT = 1 V 500 kHz

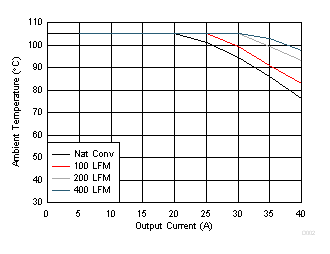

Figure 44. Safe Operating Area
TPS543C20 mech_thermal_profile_slusc81.gifFigure 46. Recommended Reflow Oven Thermal Profile

Table 7. Recommended Thermal Profile Parameters

PARAMETER MIN TYP MAX UNIT
RAMP UP AND RAMP DOWN
rRAMP(up) Average ramp-up rate, TS(MAX) to TP 3 °C/s
rRAMP(down) Average ramp-down rate, TP to TS(MAX) 6 °C/s
PRE-HEAT
TS Pre-heat temperature 150 200 °C
tS Pre-heat time, TS(min) to TS(max) 60 180 s
REFLOW
TL Liquidus temperature 217 °C
TP Peak temperature 260 °C
tL Time maintained above liquidus temperature, TL 60 150 s
tP Time maintained within 5°C of peak temperature, TP 20 40 s
t25P Total time from 25°C of peak temperature, TP 480 s
