9.3.1.1 Application Curves

TPS543C20A Transient_25A_to_50A_at_30A_per_use.gifFigure 34. Transient Response of 0.9-V Output at 12 VIN, Transient is 25 A to 50 A, Step is 25 A at 30 A/μs
TPS543C20A Transient_25A_to_50A_at_30A_per_usec_fall_SLUSCD4.pngFigure 36. Transient Response of 50-A to 25-A Load
at 30 A/μs Fall
TPS543C20A OUTPUT_Ripple_IOUT=0A_SLUSCD4.pngFigure 38. Output Ripple and SW Node
of 0.9-V Output at 12 VIN, 0-A Output
TPS543C20A Pre_bias_startup_IOUT=0A_SLUSCD4.pngFigure 40. 0.6-V Pre-Bias Start Up From Enable,
0.9-V Output at 12 VIN, 0-A Output

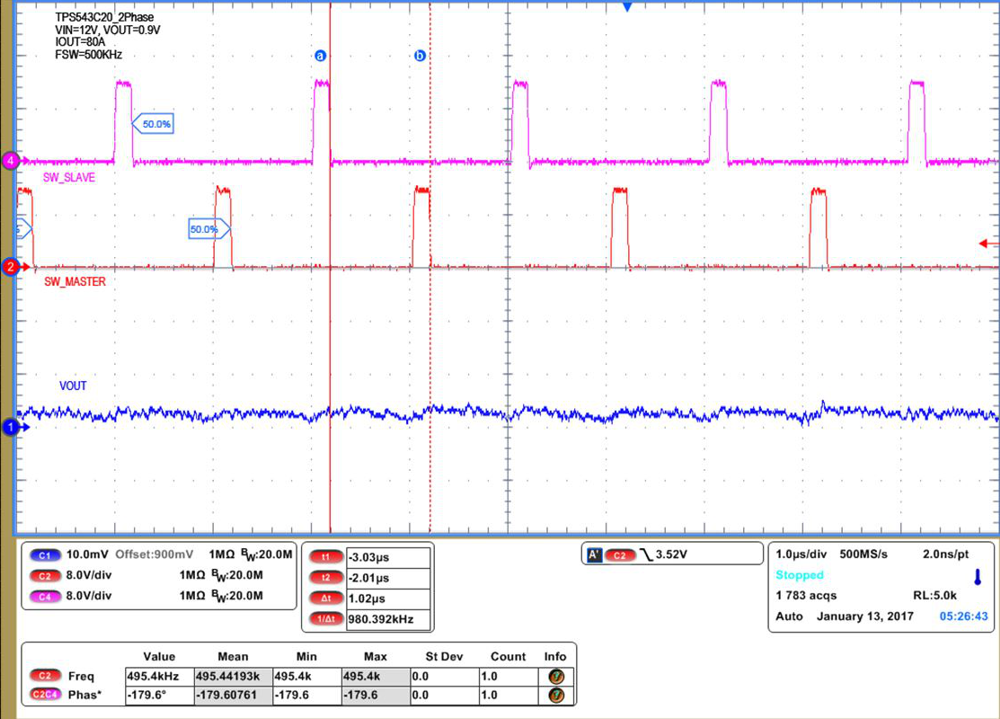

TPS543C20A Master_Slave_180_Synchronization_SLUSCD4.pngFigure 42. Master-Slave 180° Synchronization
TPS543C20A Transient_25A_to_50A_at_30A_per_usec_rise_SLUSCD4.pngFigure 35. Transient Response of 25-A to 50-A Load
at 30 A/μs Rise
TPS543C20A OUTPUT_Ripple_IOUT=80A_SLUSCD4.pngFigure 37. Output Ripple and SW Node
of 0.9-V Output at 12 VIN, -A Output
TPS543C20A Startup_IOUT=80A_SLUSCD4.pngFigure 39. Start up from Enable,
0.9-V Output at 12 VIN, 80-A Output
TPS543C20A Startup_and_shutdown_IOUT=5A_SLUSCD4.pngFigure 41. Output Voltage Start-up and Shutdown,
0.9-V Output at 12 VIN, 5-A Output
