7.4.3 Mounting and Thermal Profile Recommendation

Proper mounting technique adequately covers the exposed thermal pad with solder. Excessive heat during the reflow process can affect electrical performance. Figure 7-10 shows the recommended reflow-oven thermal profile. Proper post-assembly cleaning is also critical to device performance. Refer to QFN and SON PCB Attachment application report for more information.

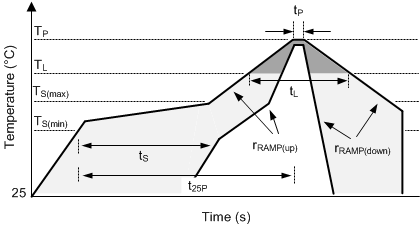

GUID-4187D2D9-B8CF-450D-9EF7-190F2E80B603-low.gifFigure 7-10 Recommended Reflow-Oven Thermal Profile
Table 7-2 Recommended Thermal Profile Parameters
PARAMETERMINTYPMAXUNIT
RAMP UP AND RAMP DOWN
rRAMP(up)Average ramp-up rate, TS(max) to TP3°C/s
rRAMP(down)Average ramp-down rate, TP to TS(max)6°C/s
PRE-HEAT
TSPreheat temperature150200°C
tSPreheat time, TS(min) to TS(max)60180s
REFLOW
TLLiquidus temperature217°C
TPPeak temperature260°C
tLTime maintained above liquidus temperature, TL60150s
tPTime maintained within 5°C of peak temperature, TP2040s
t25PTotal time from 25°C to peak temperature, TP480s
