6.3.4.4 EN/UVLO Pin

The TPS546B24S also offers a precise threshold and hysteresis current source on the EN/UVLO pin so that it can be used to program an additional UVLO to any external voltage greater than 1.05 V (typ.), including AVIN, PVIN, or VDD5. For an added level of flexibility, the EN/UVLO pin can be disabled or its logic inverted through the PMBUS Command (02h) ON_OFF_CONFIG, which allows the pin to be connected to AGND to ensure the output is not enabled until PMBus programming has been completed.

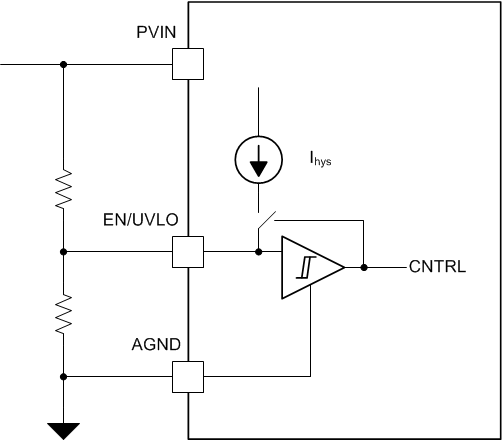

GUID-39C8A89A-C4BE-46C5-A638-052D7A53BD4C-low.gifFigure 6-5 TPS546B24S UVLO Voltage Divider
