6.6 Typical Characteristics

VPIN = VAVIN = 12 V, TA = 25 ºC, RRT = 40.2 kΩ (unless otherwise specified). Safe operating area curves were measured using a Texas Instruments evaluation module (EVM).
TPS546C23 D033_SLUSCC7.gif
VIN = 5 V L = 300 nH Snubber = 1 nF + 1Ω
fSW = 300 kHz RDCR = 0.2 mΩ RBOOT = 0 Ω
Figure 1. Efficiency vs Output Current
TPS546C23 D035_SLUSCC7.gif
VIN = 12 V L = 300 nH Snubber = 1 nF + 1Ω
fSW = 300 kHz RDCR = 0.2 mΩ RBOOT = 0 Ω
Figure 3. Efficiency vs Output Current
TPS546C23 D001_SLUSCC7.gifFigure 5. Low-Side MOSFET On-Resistance (RDS(on))
vs Junction Temperature

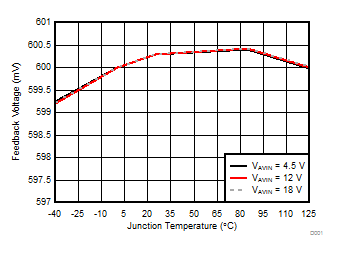

TPS546C23 D003_SLUSCC7.gif
VFB = 600 mV
Figure 7. Feedback Voltage vs Junction Temperature

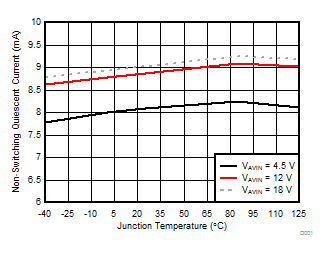

TPS546C23 D004_SLUSCC7.gif
Figure 9. Non-Switching Input Current (IAVIN)
vs Junction Temperature
TPS546C23 D008_SLUSCC7.gif
IBP3 = 5 mA VPVIN = VAVIN= 12 V
Figure 11. BP3 Voltage vs Junction Temperature
TPS546C23 D005_SLUSCC7.gif

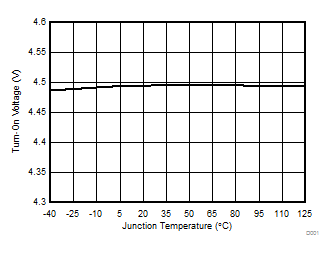

VIN_ON = 4.5 V
Figure 13. Turnon Voltage vs Junction Temperature
TPS546C23 D014_SLUSCC7.gif

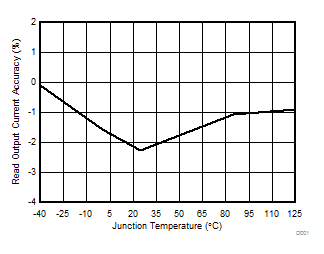

IOUT = 20 A VPVIN = VAVIN= 12 V
Figure 15. READ_IOUT Accuracy vs Junction Temperature

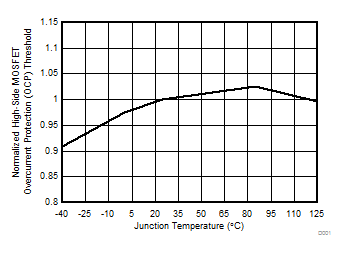

TPS546C23 D012_SLUSCC7.gif
BOOT – SW = 6.5 V VPVIN = VAVIN= 12 V
Figure 17. High-Side Overcurrent Protection
vs Junction Temperature

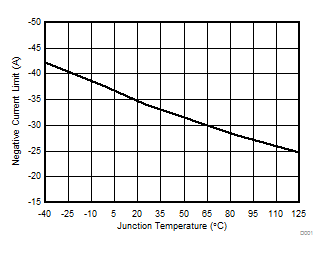

TPS546C23 D015_SLUSCC7.gif
Figure 19. Negative Overcurrent Limit
vs Junction Temperature

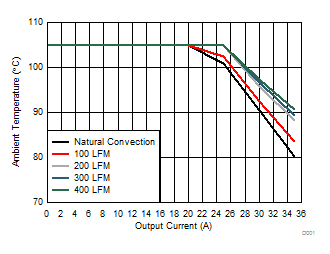

TPS546C23 D031_SLUSCC7.gif
VIN = 12 V VOUT = 1 V fSW = 300 kHz
Figure 21. Safe Operating Area
TPS546C23 D034_SLUSCC7.gif
VIN = 5 V L = 300 nH Snubber = 1 nF + 1Ω
fSW = 500 kHz RDCR = 0.2 mΩ RBOOT = 0 Ω
Figure 2. Efficiency vs Output Current
TPS546C23 D036_SLUSCC7.gif
VIN = 12 V L = 300 nH Snubber = 1 nF + 1Ω
fSW = 500 kHz RDCR = 0.2 mΩ RBOOT = 0 Ω
Figure 4. Efficiency vs Output Current

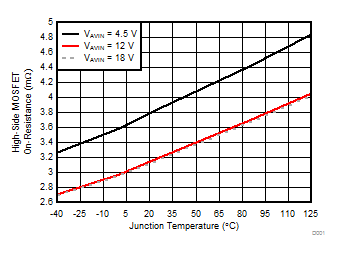

TPS546C23 D002_SLUSCC7.gifFigure 6. High-Side MOSFET On-Resistance (RDS(on))
vs Junction Temperature
TPS546C23 D009_SLUSCC7.gif

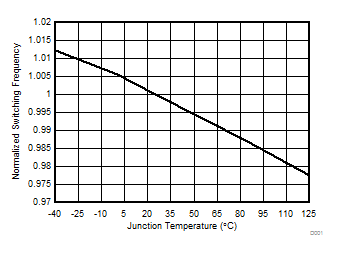

Figure 8. Normalized Switching Frequency
vs Junction Temperature

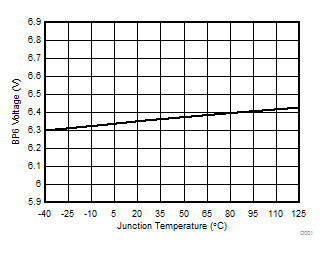

TPS546C23 D007_SLUSCC7.gif
IBP6 = 10 mA VPVIN = VAVIN= 12 V
Figure 10. BP6 Voltage vs Junction Temperature
TPS546C23 D010_SLUSCC7.gif

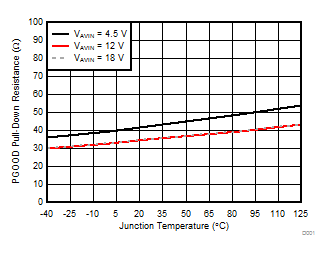

Figure 12. PGOOD Pulldown Resistance
vs Junction Temperature
TPS546C23 D006_SLUSCC7.gif

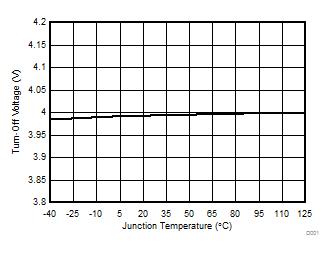

VIN_OFF = 4 V
Figure 14. Turnoff Voltage vs Junction Temperature
TPS546C23 D011_SLUSCC7.gif
VPVIN = VAVIN= 12 V
Figure 16. READ_VOUT Accuracy vs Junction Temperature
TPS546C23 D013_SLUSCC7.gif

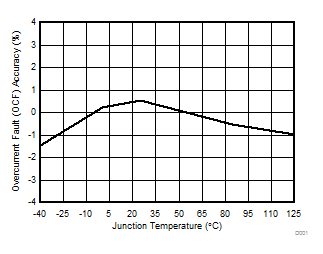

OCF = 20 A VPVIN = VAVIN= 12 V
Figure 18. Overcurrent Fault Protection (OCF) Accuracy
vs Junction Temperature

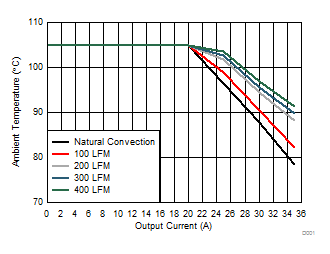

TPS546C23 D030_SLUSCC7.gif
VIN = 5 V VOUT = 1 V fSW = 300 kHz
Figure 20. Safe Operating Area
TPS546C23 D032_SLUSCC7.gif

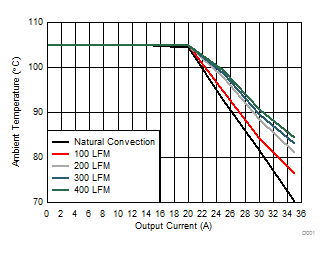

VIN = 12 V VOUT = 1 V fSW = 500 kHz
Figure 22. Safe Operating Area
